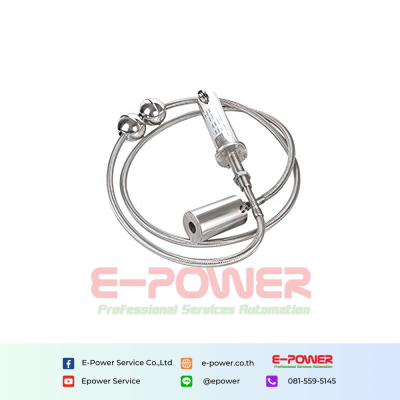

SP400 Flexible type Magnetostrictive level sensor

Product description

Download

Flexible type magnetostrictive level sensors are designed for high - range tank level measurements(5-20m). It is mainly used in large industrial oil tanks or crude oil storage tanks.

Application :

Oil Depot
Fuel / Oil /Diesel/Gasoline
Water tanks and reservoirs
Underground fuel tank
Auto, Truck fuel storage

Advantages

01 Full-featured: real-time comprehensive monitoring
02 Installation and maintenance is simple and convenient: standard parts are connected, no installation experience is required, and installation can be completed in a few minutes
03 Accurate measurement: liquid level sensor accuracy: ± 0.3mm, resolution: 0.05mm, density accuracy: 0.01g/con3
04 Wide application

Product Specifications

Range	5~20m ((soft cable available for more than 5m))
Accuracy	±0.5mm
Explosion-proof	IP67/ExiaIICT6
Material	316L
Power supply	+24 ~ 26VDC
Probe Length	Rigid Rod: 500mm to 4000mm by customized Soft Rod:2000mm to 15000mm by customized
Communication	RS485
