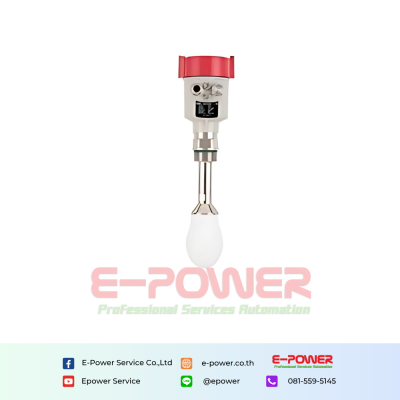

HR266 radar liquid level sensor, It is a non-contact, microprocessor controlled, easy to install and maintain digital level instrument.
Application :
Advantages
01 High precision; Strong anti-interference ability, not affected by temperature, humidity and wind power
02 Simple installation and debugging; Low power consumption
03 Beam angle is small, the energy is concentrated, can enhance the ability of echo and to avoid interference
Product Specifications
| Measurement Span | 0 to 20 meters |
| Signal Output: | 4...20mA/HART (2 wires/4 wires) RS485/Modbus |
| Process Connection | Thread or Flanges |
| Medium Temperature | -40~150 |
| Process Pressure | -1Bar~1 Bar |
| Accuracy | ±3mm |
| Proof Grade | IP67 |
| Supply | DC24V or 85-265VAC |
| The Frequency Span | up to 26G Hz |
| Explosion proof grade | Exib IICT6 Gb |
