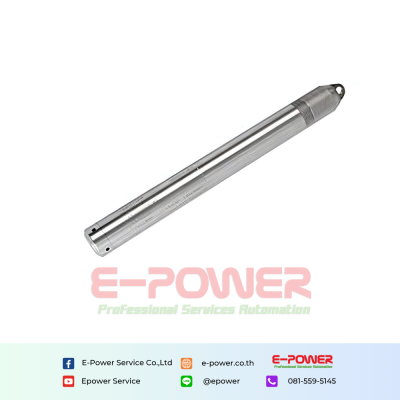

Remote water level data logger is a self-powered data logger. Based on a titanium alloy casing and a lithium battery power supply design, it can be immersed in liquid for more than 10 years for a long time. The built-in temperature sensor can be used to monitor the depth, pressure and temperature of groundwater.
Application :
- Groundwater or surface water level monitoring
- Marine Environmental Engineering Project
- Flood control system or flood control level monitoring
- Real-time monitoring of the liquid level in the tank
- Industrial control system and on-site liquid level monitoring
Advantages
01 Self-powerd structure, without the trouble of cable entanglement.
02 Monitor liquid level, pressure and temperature data at the same time.
03 Titanium alloy or 316L shell sealing structure can be used for corrosive medium.
04 Full range digital calibration, temperature error compensation in the whole temperature zone.
05 RS485 interface MODBUS-RTU standard communication protocol can be used in DCS or PLC system.
06 Measurement accuracy is up to 0.05% FS and low-power lithium battery power technology.
Product Specifications
| Model | HPT673S |
| Pressure Range | 0 ~ 10m HO...300m HO |
| Level Accuracy | 0.05%F.S (0 ~ 50) |
| Level resolution | 1mm |
| TEMP. accuracy | ±0.2 |
| TEMP. resolution | 0.1 |
| Stability | 0.05%F.S/year |
| Operating temperature | -10~80 |
| Temp. compensation range | 0~50 |
| Supply voltage | External voltage:DC5~30V(typical 24V); Internal battery: 2.7~3.6VDC |
| Power protection | Protection against reverse connection,and against 2KV surge and over voltage |
| Output | RS485 to USB. Download data to computer via adapter |
| Measuring medium | Compatible with 316L stainless steel and fluororubber |
| Protection class | IP68 |
