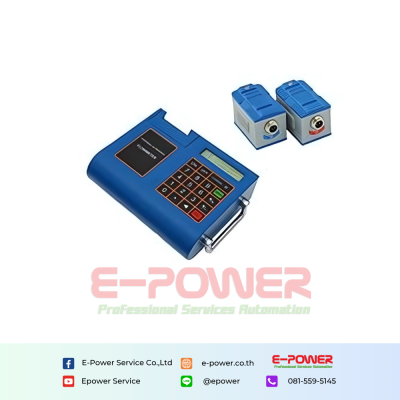

PUF Ultrasonic Water Flowmeter with Printer

Product description

Download

Printer Ultrasonic Water Flowmeter advanced circuit design, the integration of the latest semiconductors, the user-friendly software interface both in English and Chinese languages and small-sized PCB board.

Application :

Water supply
Sewage treatment
Sea water desalination
Pure water
Ultra-pure water
Industrial circulating water
Diesel fuel, oil flow metering, etc

Advantages

01 Large capacity battery: Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation.
02 Built-in printer: Built-in mini thermal printer with instant and timing print function, also you can print more than 20 kinds of measuring results if you set in advance.
03 Built-in data logger: Uplink over 20 measuring data to computer or internet.

Technical Data

Items	Spec
Main Unit	2 line x 20 character LCD with backlight Working temperature: -20~60°C Working temperature: -20~60°C Mini thermal printer with 24 line character output 4x4+2 pushbutton keypad RS485 serial port, can download the newest software upgrading on our company's website
Transducers	TS-1: small size transducer (magnetic) for pipe size: DN15-100mm, liquid temperature 110°C DN15-100mm, liquid temperature 110°C TM-1:medium size transducer (magnetic) for pipe size:DN50-1000mm, liquid temperature 110°C size:DN50-1000mm, liquid temperature 110°C
Liquid types	Water, sea water, industrial sewage, acid and alkali liquid, various oils etc. liquid which can transmit sound wave.
Flow velocity range	0-±30m/s
Accuracy	Better than ±1%
Power Supply	Built-in rechargeable Ni-MH battery (for 20 hours operation) orAC 220V
Power Consumption	1.5W
Charging	Intelligent charging with AC 220V. After charging sufficiently, it automatically stop and display green light
Weight	Net weight: 2.5kg (main unit)
Remarks	With a high strength carrying case suitable for normal and harsh environment
