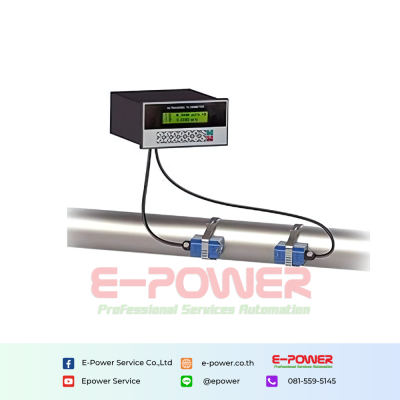

UF2000SS Pannel Mount Ultrasonic Flowmeter

Product description

Download

The Pannel mount type ultrasonic flow meter can be applied to a wide range of pipe flow measurements. Applicable liquids include pure liquids as well as liquid with small quantity of tiny particles.

Application :

Water (hot water, chilled water, city water, sea water, waste water, etc.)
Chemicals (alcohol, acids, etc.
Plant effluent
Beverage, liquid food
Ultra-pure liquids

Advantages

01 Making it ideal for accurate measuring the total well depth
02 Self-contained power supply
03 Fast response, suitable for noisy or adverse conditions
04 An ultra-wide user defined conductivity range allows for use in different
05 Audible and visible alarms activated when the probe makes

Technical Data

Model	UF2000SS
Type	Separated Panel Mount
Pipe Size	32-6000mm
Working tempe	-30°C~90°C
High-temperature	-30°C~160°C
Flow output signal	0~10mA/4~20mA /Pulse/MODBUS/HART
Supply voltage	AC220V or DC24V
Linearity	0.5%, Repeatability: 0.2%, Accuracy: ±1%
Powerful Recording Function, last 64 days/64 months/5 years
