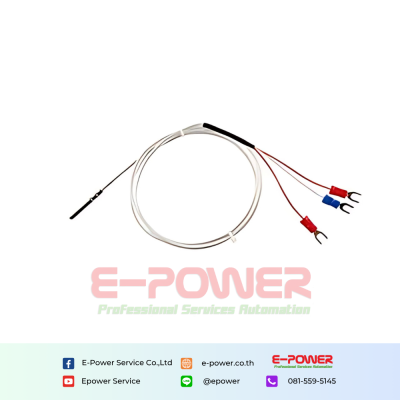

Resistance Temperature Detector

Categories : HolyKell , Temperature Sensors

Product description

Download

Resistance temperature detector is one of the most commonly used temperature detectors in low and medium temperature ranges. Based on the contact temperature measurement method, it can meet most of the industrial temperature measurement requirements.

Application :

Platinum thermal resistance sensor
Used for bolier/pipeline/electric heating plant etc...
Object surface temperature detection
Main steam temperature detection/Medical

Advantages

01 Platinum thermal resistance sensor with the highest accuracy.
02 Lower thermal resistance used in thermal management solutions.
03 High quality teflon shielded wire is not afraid of any pull.
04 Silicone cable with high corrosion resistance.
05 Stronger waterproof with rolling process.
06 PVC cable with low cost.

Temperature Data

Product	HTS300 Series
Temp Range	-200~600 (thermal resistor) /-40~1200 (K type) 0~1800 (B type)
Accuracy	0.1%, 0.3%, 0.5% or optional
Index Number	PT100, PT1000, Cu50, Cu100 (thermal resistor)
Probe Length	30mm (default) 100mm, 150mm, 200mm or by customized
Diameter	Φ4mm, φ2mm, φ3mm, φ5mm, φ6mm or customized
Cable Length	1m (standard) or customized
Installation	Plug-in installation
Cable Material	PVC, Silicone, Teflon, PTFE
Connection	2-wire, 3-wire, 4-wire
Terminals	U type, Pin type, Aviation Type
Process	Groove Rolling, SMD, etc.
