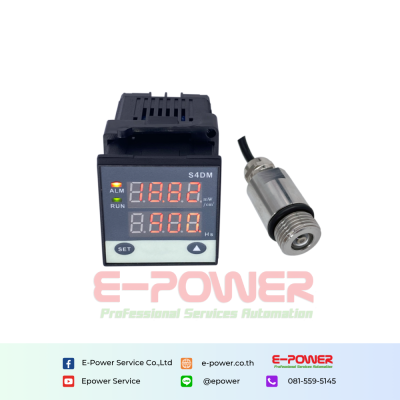

CHS4DM - UV Intensity Monitor With Detector (UV Water Disinfection System)

On-Line/Real-time Ultraviolet Monitor The Intensity monitor has an LED display with easy-to-use menu options. The monitor displays details about the intensity, and lamp hours. The monitor allows you to set alarms that will give you a notification when the intensity go beyond the ideal range.

Categories : ApoSun , UV Meter

Brands :ApoSun

Product description

Overview

CHS4DM UV-C Intensity Monitor With Detector is an on-line ultra violet fail-safe monitor, especially for UV disinfection lamp, ultraviolet light accelerated aging test machine, water treatment, UV air purifier, air sanitizer, ultra-pure water system etc.

The best partner for UV devices on various occasions & applications:

UV curing and aging
Air sterilization
Sewage treatment, Water disinfection
Semiconductor fabrication
Offset printing
Environmental monitoring
Other industrial process control

Main Features

Advanced MCU for controlling, stable & reliable
Standard panel 1/16, 1/8 din: 48×48mm 48×96mm
LED display
Accumulated timing for UV lamp running-time
UV irradiance low alarm
Easy operation & installation
Used in curing, aging, air sterilization, sewage treatment, water treatment, ozone detection, arc monitoring, ultra-pure water system and other industries

UVC Intensity Monitoring System

Best Partner for Air Water Purification
UV Lamp Hour Management

Specification

Display Parameters Table

Model	LED display	Display parameters			Alarm			Dimension
		Intensity relative value	Intensity absolute value	Running time	For UV relative value	For UV absolute value	For running time	Frame	Holing
CHS4AM	4 digits LED	✓	×	✓	✓	×	✓	48×48×85mm	45×45mm
CHS4DM	4 digits LED	×	✓	✓	×	×	✓	48×48×85mm	45×45mm
CHS5AM	5 digits LCD	✓	✓	✓	✓	×	✓	48×94×110mm	45×92mm
CHS9AM	5 digits LED	✓	✓	✓	✓	×	✓	48×94×110mm	45×92mm
