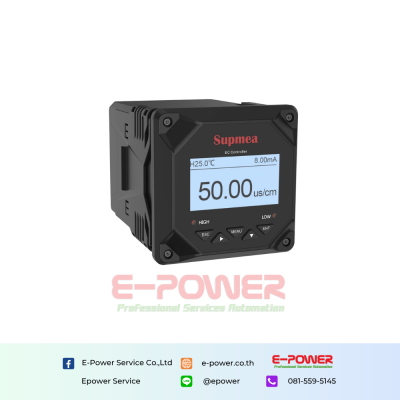

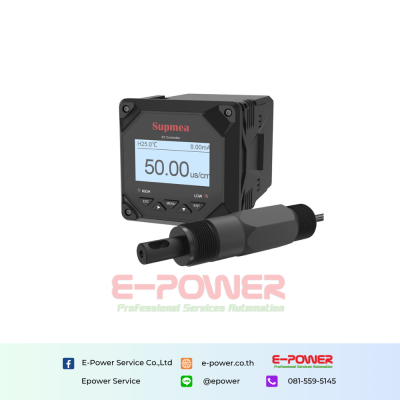

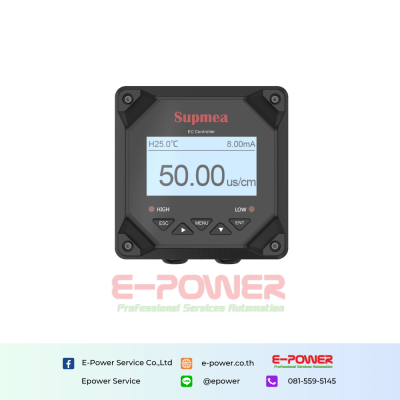

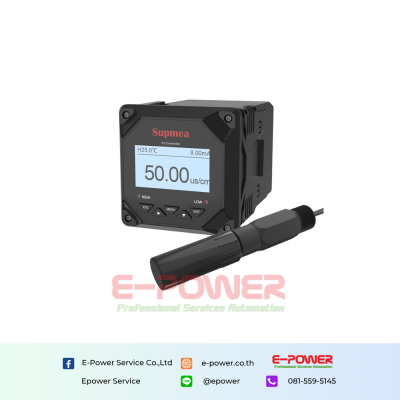

SUP-DC2000 Digital Analyzer Monitor

SUP-DC2000 Digital analyzer monitor is a general-purpose water quality controller. It is suitable for use with Supmea's multiple water quality series digital sensors. It is used to monitor water quality parameters including pH, ORP, conductivity, dissolved oxygen, turbidity, sludge concentration, etc. The parameters are output to the monitoring room through RS485 or current transmission for record keeping.

Categories : Sensor , Liquid analysis , EC sensor and meter

Brands :Supmea

Product description

Download

Characteristics

Range: pH: (0～14)pH
ORP:(-2000～2000)mV
DO:(0～40)mg/L
TDS: (0～600)mS/cm
Turbidity: (0～4000)NTU
Suspended solids: (0～120000)mg/L
Output signal: 4~20mA; Relay; RS485
Power supply: AC：(100～240)VAC; DC：24VDC(Optional)

Specification

TDS and EC Meter Specifications Table

Product	TDS and EC meter
Model	SUP-DC2000
Dimension	100mm100mm150mm
Range	pH: (0-14) pH
	ORP: (-2000-2000) mV
	DO: (0-40) mg/L
	TDS: (0-400) mS/cm
	Turbidity: (0-4000) NTU
	Suspended solids: (0-120000) mg/L
Relative humidity	(10~85)%
Temperature range	(0 ~ 60)°C
Communication	RS485, Modbus-RTU
Signal output	4-20mA, maximum loop 500Ω, 0.2%FS
Power supply	AC: (100-240) VAC
Power supply	DC: 24V DC (Optional)
Relay output	250VAC, 3A
