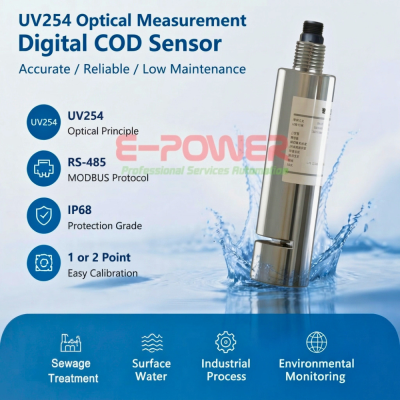

REMOND Online UV254 Digital COD Sensor Probe RS485 Modbus COD Probe Sensor

Product Overview

The UV254 Optical Measurement Digital COD Sensor is an industrial-grade, online water quality monitoring probe designed for continuous measurement of Chemical Oxygen Demand (COD). It utilizes an advanced UV254 optical principle, which correlates organic content to UV absorption at 254 nm. This method offers stable, accurate, and reliable readings with the significant advantage of being less affected by sample turbidity and color compared to traditional methods. The sensor is digital, robust, and designed for low-maintenance operation in harsh environments.

Hghlights at a glance

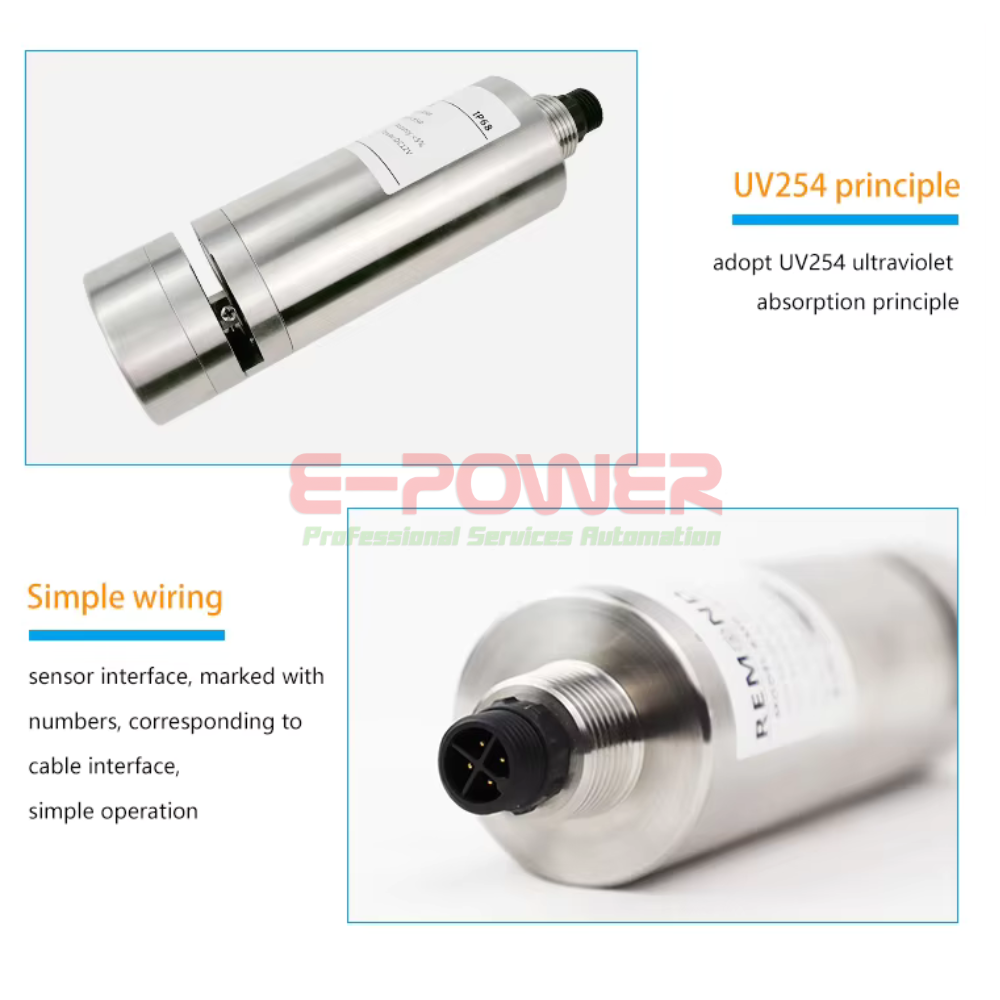

• This UV254 optical COD sensor adopts ultraviolet absorption principle to realize fast chemical free COD measurement. Equipped with RS485 Modbus communication output, it directly connects to industrial controllers for real time water quality data acquisition. Built in self-cleaning brush effectively reduces fouling interference. 316 stainless steel housing with IP68 protection grade suits continuous on site monitoring for wastewater, industrial circulating water and sewage treatment.


• UV254 optical measurement, no chemical reagent consumption.


• RS485 Modbus RTU digital output, easy system integration.


• Optional self-cleaning function, lower maintenance workload.


• Wide measuring range optional 0-500/1000/2000mg/L.


• IP68 316SS body, stable under 0-3bar working pressure.

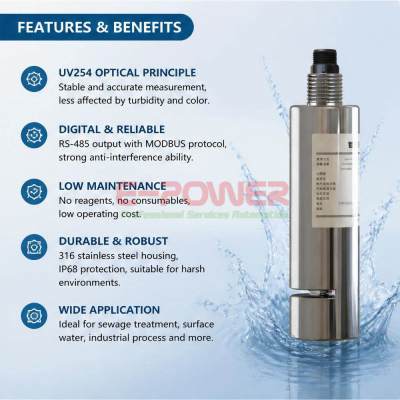

Key Features & Benefits

• UV254 Optical Principle: Provides stable and accurate COD measurements. The measurement is minimally impacted by water color and turbidity, ensuring data reliability.

• Digital & Reliable Output: Features an RS-485 output and supports the MODBUS communication protocol, allowing for seamless integration with PLCs, SCADA systems, and other data acquisition devices. It offers strong anti-interference capabilities.

• Low Operating Cost: The optical measurement principle eliminates the need for chemical reagents or consumable parts, resulting in a very low maintenance workload and reduced long-term operating costs.

• Durable & Robust Construction: Constructed with a 316 stainless steel housing and rated IP68 for high protection against water and dust ingress. It is built to withstand harsh industrial and environmental conditions.

• Easy Calibration: Supports simple 1 or 2-point calibration procedures for straightforward field maintenance.

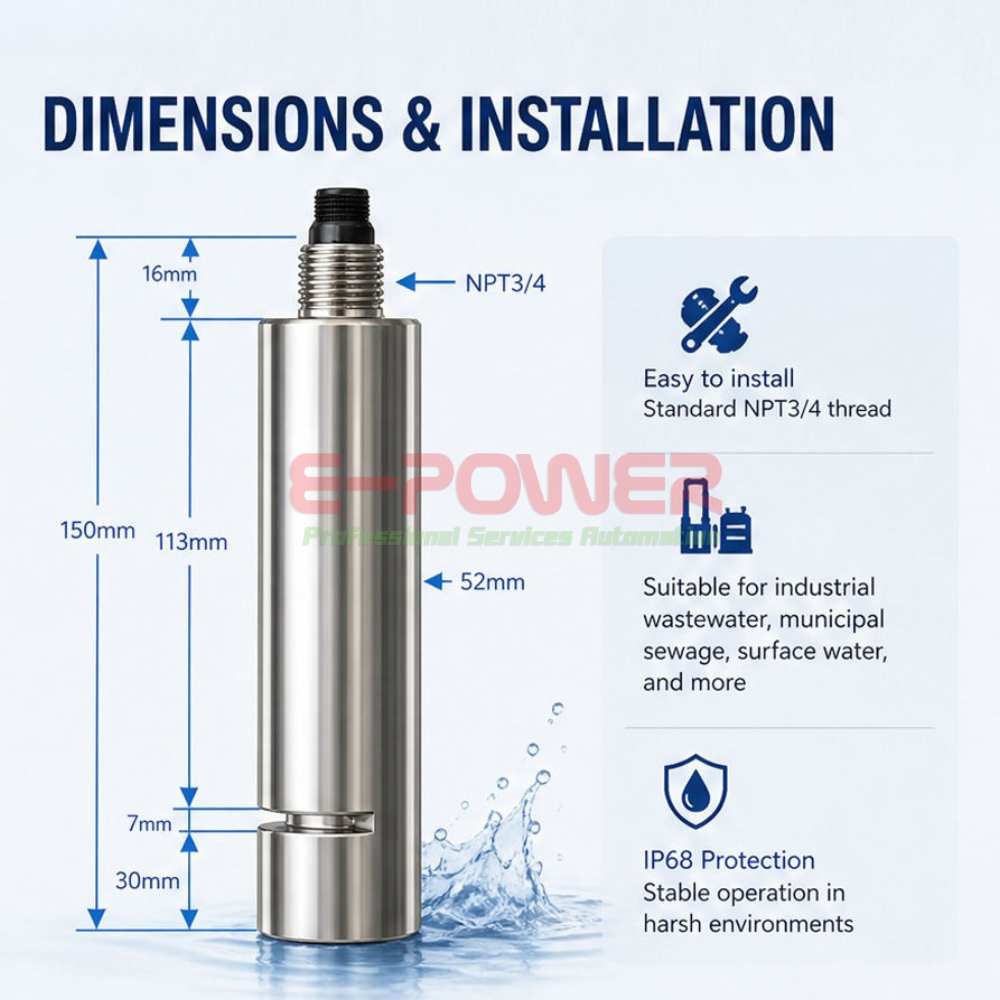

Dimensions & Installation
The sensor has a compact, cylindrical design.

• Overall Length: 150mm

• Body Diameter: 52mm

• Installation Type: Immersion or Pipeline installation. Equipped with a standard NPT3/4 thread for secure and convenient installation.

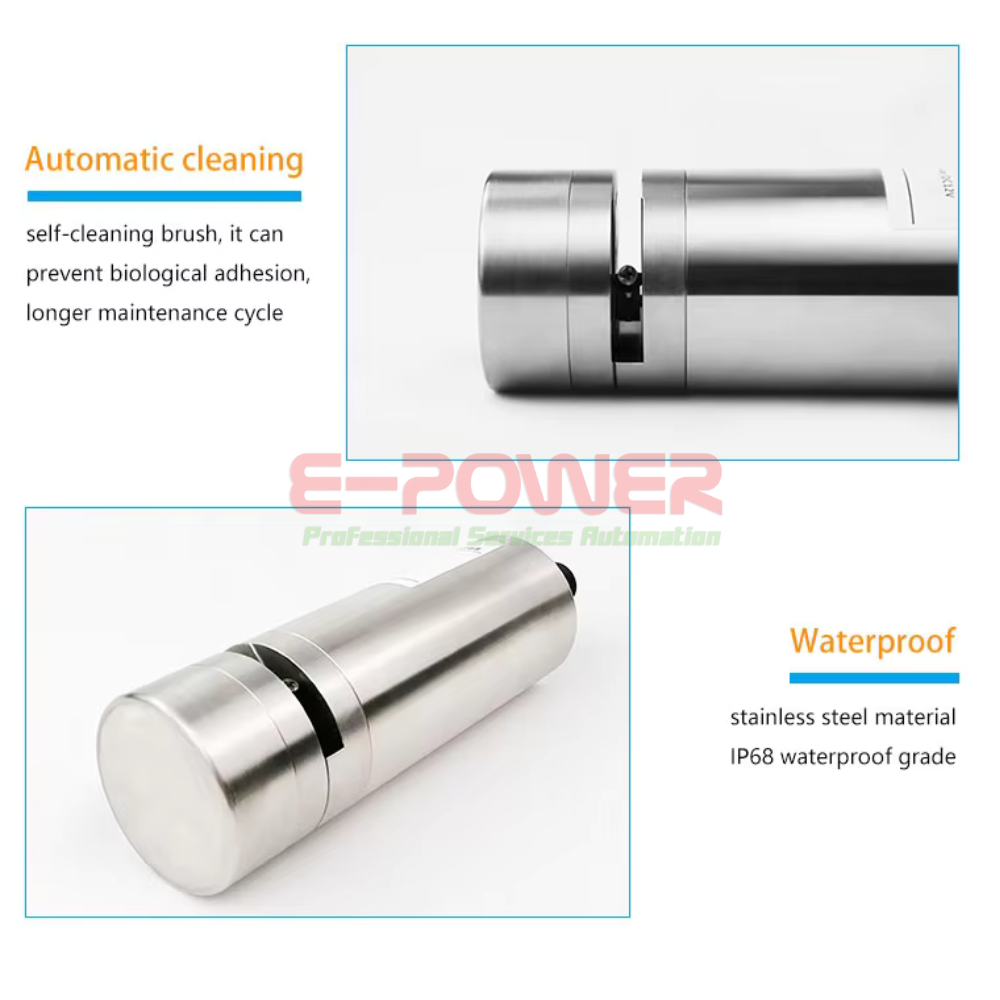

• Cleaning: Designed for easy maintenance, with a clear optical window that can be wiped clean. An optional automatic cleaning brush is also available.

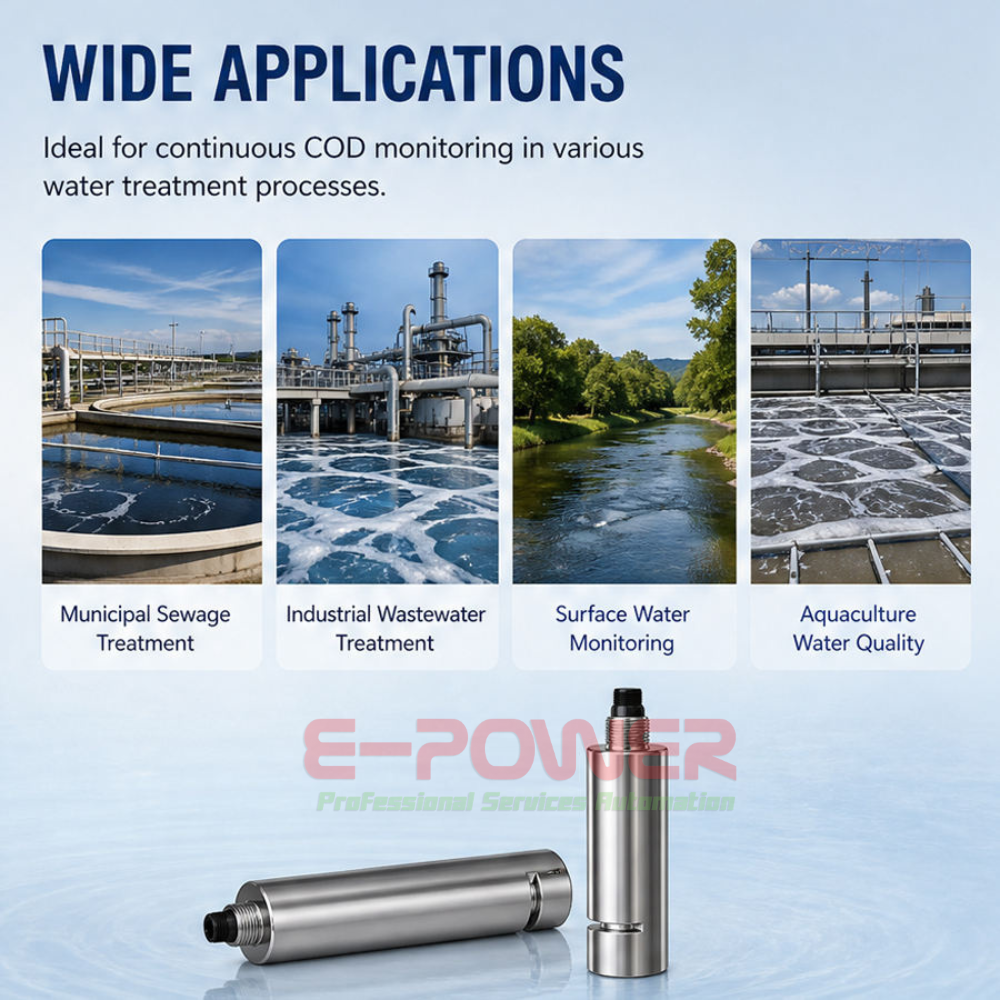

Wide Applications
The sensor is ideal for continuous COD monitoring in a variety of water treatment and environmental applications, including:

• Municipal Sewage Treatment (Influent and Effluent)

• Industrial Wastewater Treatment (e.g., petrochemical, textile, food & beverage, paper & pulp)

• Surface Water Monitoring (Rivers, Lakes, Reservoirs)

• Environmental Protection Monitoring

• Aquaculture Water Quality Management
