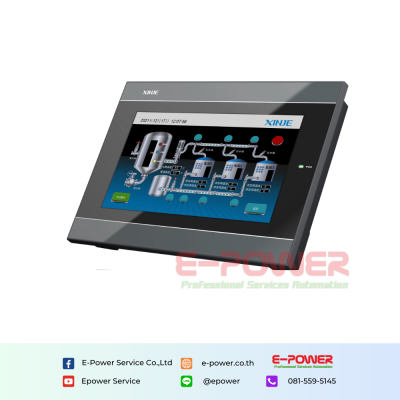

TS5L series


Product description

TS5L serise

  • remate functions: remote desktop (PC remote control HMI real-time screen), remote transparent transmission (remote upload/download PLC program), remote download (updating HMI program)
  • It supports audio output and can output various audio through external speakers
  • cover mainstream information interaction protocols and support MQTT/TCP IP
  • Standard network port, optional WIFI/4G module, networking through WIFI or 4G
  • Edge calculation is conducive to data analysis and statistics

Product specification

Product modelTS5L-700TS5L-1000
Product featuresDimension7"10.1"
Type16.77 million colors
Resolution800*4801024*600
Brightness200 cd/mÂē
Touch panel4 wires resistance touch panel
Service lifeAbove 50000 hours, ambient temperature 25°C, 24 hours operation
ProcessorCortex-AB 600MHz
Memory128MB
InterfaceCOM1 portRS232/RS485
COM2 portRS232/RS485/RS422
Ethernet portStandard RJ45, 10/100M
USB-A portFlash disk port, USB2.0 Standard
USB-B portUSB download port, USB2.0 standart
4GOptional
WIFIOptional
Electrical featuresInput voltageDC24V (voltage range: DC22-DC26V)
Power5W8W
Allowable instantaneous power failureBelow 10ms (actual power loss less than 1s)
Withstand voltageAC1000V, 10mA, less than 1 minute (signal and ground)
Insulation impedanceAbove DC500V, 10MÎĐ (signal and ground)
EnvironmentOperation temperature0-50°C
Storage temperature-20-60°C
Ambient temperature10%RH~90%RH (no condensation)
Vibration resistance10~25Hz (X,Y,Z direction each 30 minutes 2G)
Anti-interferenceVoltage noise: 1500Vp-p, pulse width 1 us, 1 minutes
Ambient airNon-corrosive gas
Protection levelFront panel IP65
Cooling methodNatural air cooling
DimensionExternal dimension(mm)205.8*147.2*35.5277.0*191.7*34.6
Opening size(mm)192.1*138.5(Âą0.1)260.2*179.7(Âą0.1)
