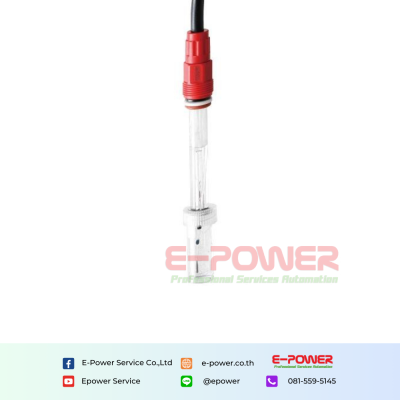

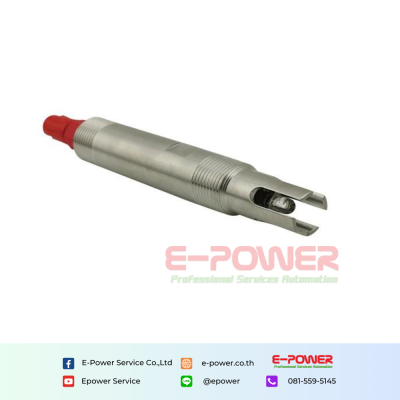

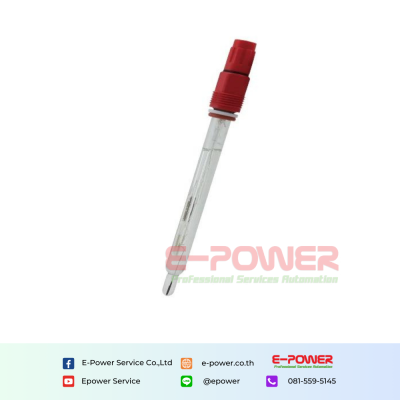

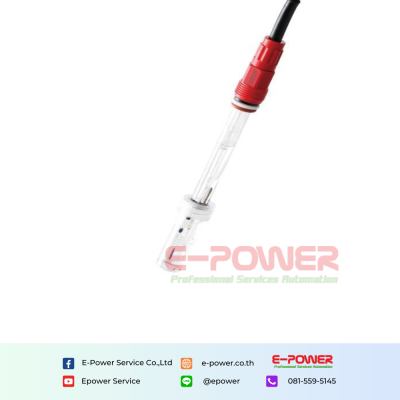

SUP-PH5050 high temperature pH sensor
SUP-pH-5050 high temperature glass electrode used in PH measurement is also called primary cell. The primary battery is a system whose function is to convert chemical energy into electrical energy. The voltage of this battery is called electromotive force (EMF). This electromotive force (EMF) consists of two half-cells.
āļāļģāļāļ§āļ
āđāļāļĢāļāļāđ :Supmea
Product description
Characteristics
- Zero potential point: 7 Âą 0.5 pH
- Conversion coefficient: > 98%
- Installation size: 3/4NPT
- Pressure: 1 ~ 3 Bar at 25 āđC
- Temperature: 0 ~ 60 āđC for general cables
Specification
| Product | Plastic pH sensor |
| Model | SUP-PH5050 |
| Measurement range | 0-14 pH |
| Zero potential point | 7 Âą 0.5 pH |
| Slope | > 96% |
| Internal impedance | 150-250 MÎĐ(25 āđC) |
| Practical response time | < 1 min |
| Installation size | PG13.5 Pipe Thread |
| NTC | NTC10K/NTC2.252K/Pt100/Pt1000 |
| Heat resistance | 0-120 āđC for general cables |
| Pressure resistance | 0.4MPa |
| Connection | Low-noise cable |
pH sensor
SUP-PH5050
high temperature
high temperature pH sensor
SUP-PH5050 high temperature pH sensor
