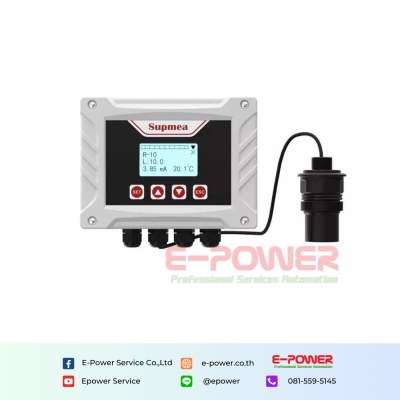

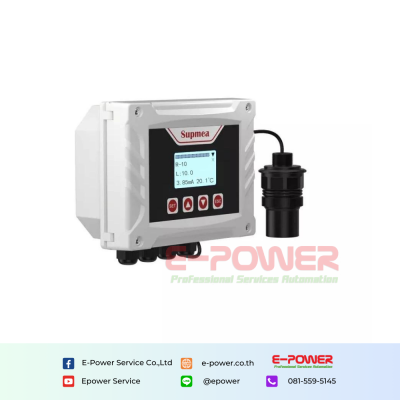

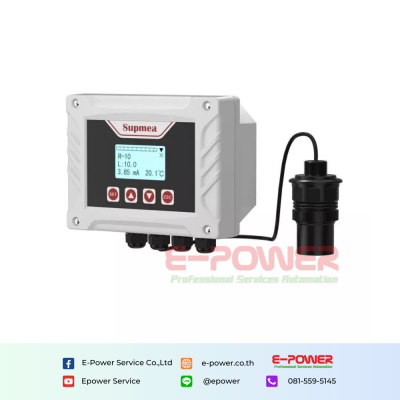

SUP-ULS-B Ultrasonic level transmitter
SUP-ULS-B Ultrasonic level transmitter is a non-contact, high reliability, cost-effective, easy to install and maintain liquid level/material level measure instrument. It can meet most liquid level/level measurement requirements without contacting the measured medium. It is a new generation of ultrasonic level gauge with completely independent property rights of our company.
จำนวน
Product description
Characteristics
- Measure range: 0-15m(optional)
- Blind zone: 0.3m
- Accuracy: ±0.3%FS,±0.5%FS
- Power supply: 100-240 VAC,18-28 VDC
Specification
| Product | Ultrasonic level transmitter | |
| Model | SUP-ULS-B | |
| Measure range | 0-5m,0-10m,0-15m(optional) | |
| Blind zone | 0.3m(range 5m) 0.35m(range 10m) 0.5m(range 15m) | |
| Accuracy | ±0.3%FS, ±0.5%FS | |
| Display | Monochrome LCD screen | |
| Output (optional) | Isolated,4-20mA Output precision:±0.5%FS RL500Ω | |
| Measuring variable | Level/Distance | |
| Power supply | 100-240 VAC,5W MAX,50/6Hz 18-28 VDC | |
| Temperature range | Converter:-20-60 Sensor:-20-80 | |
| Humidity range | 10%-85% RH(no condensation) | |
| Ingress protection | Converter:IP65 Sensor:IP68 | |
| Cable | 10m(Standard) 30m MAX(optional) | |
| Alarm | 2 relays Capacitance AC250V/3A(Standard) 4 relays(optional) | |
| Inatallation | Wall-mounted | |
| Communication | Isolated RS485,Modbus-RTU | |
Ultrasonic level transmitter
level transmitter
SUP-ULS-B Ultrasonic level transmitter
SUP-ULS-B
Supmea
Supmea
