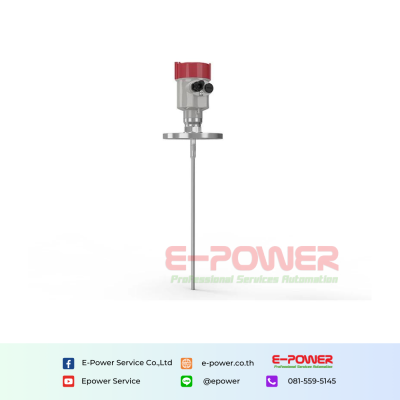

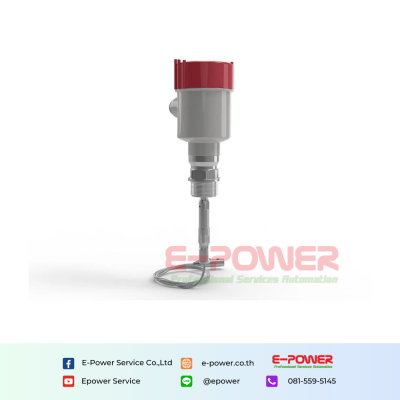

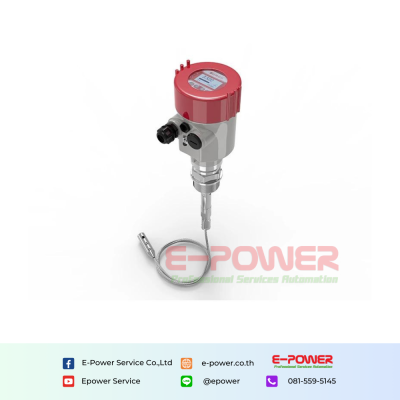

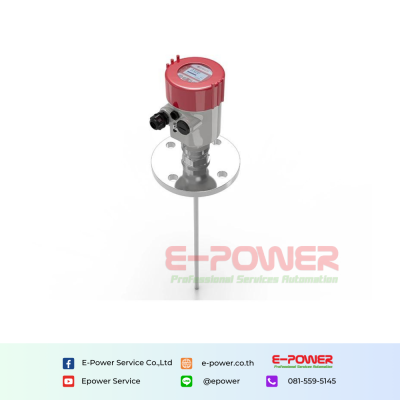

SUP-RD701 Guided wave radar level meter
SUP-RD701 Guided wave radar for level measurement in liquids and bulk solids. In level measurement with guided wave radar, microwave pulses are conducted along a cable or rod probe and reflected by the product surface.
āļāļģāļāļ§āļ
Product description
Characteristics
- Range: 0~30 m
- Application: Liquids and bulk solids
- Frequency Range: 500MHz ~ 1.8GHz
Specification
| Product | Guided wave radar level meter | |
| Model | SUP-RD701 | |
| Accuracy | Âą5mm (range 5m) Âą10mm (range 10m) Âą20mm (range 20m) Âą25mm (range 30m) | |
| Application | Liquids and bulk solids | |
| Process connection | Thread/ Flange(optional) | |
| Process temperature | (-40~250)°C | |
| Process pressure | -0.1 ~ 4MPa | |
| Ingress protection | IP67 | |
| Frequency range | 500MHz-1.8GHz | |
| Signal output | 4-20mA/HART RS485/Modbus | |
| Power supply | 24VDC/ Two-wire (24VDC/220VAC)/ Four-wire | |
