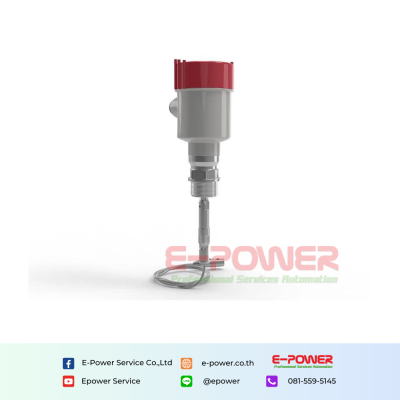

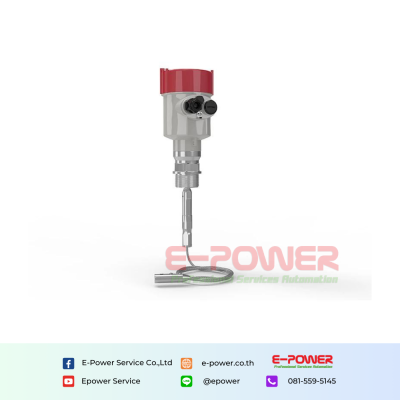

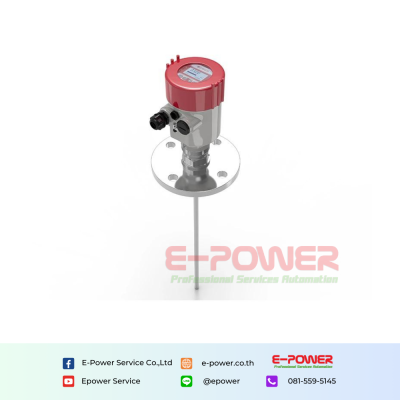

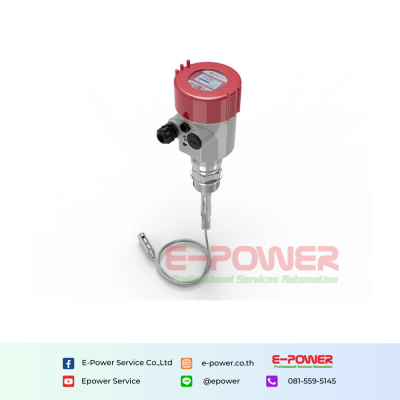

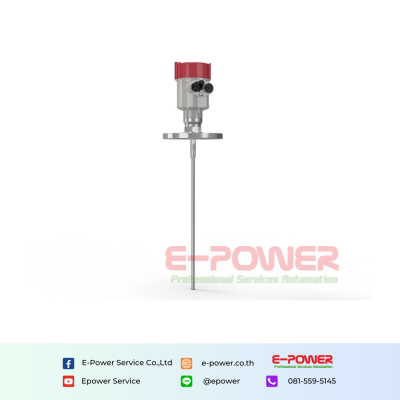

SUP-RD701 Guided wave radar level meter

SUP-RD701 Guided wave radar for level measurement in liquids and bulk solids. In level measurement with guided wave radar, microwave pulses are conducted along a cable or rod probe and reflected by the product surface.

Quantity

Categories : Sensor , Level , Radar level transmitter

Brands :Supmea

Product description

Characteristics

Range: 0~30 m
Application: Liquids and bulk solids
Frequency Range: 500MHz ~ 1.8GHz

Specification

Product	Guided wave radar level meter
Model	SUP-RD701
Accuracy	±5mm (range 5m) ±10mm (range 10m) ±20mm (range 20m) ±25mm (range 30m)
Application	Liquids and bulk solids
Process connection	Thread/ Flange(optional)
Process temperature	(-40~250)°C
Process pressure	-0.1 ~ 4MPa
Ingress protection	IP67
Frequency range	500MHz-1.8GHz
Signal output	4-20mA/HART RS485/Modbus
Power supply	24VDC/ Two-wire (24VDC/220VAC)/ Four-wire
