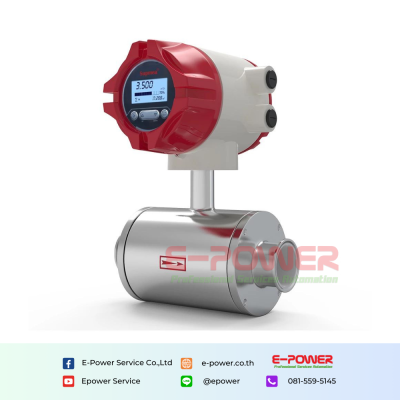

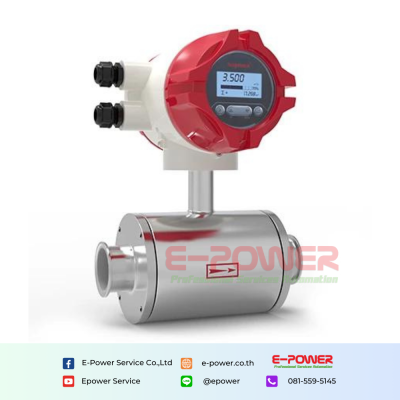

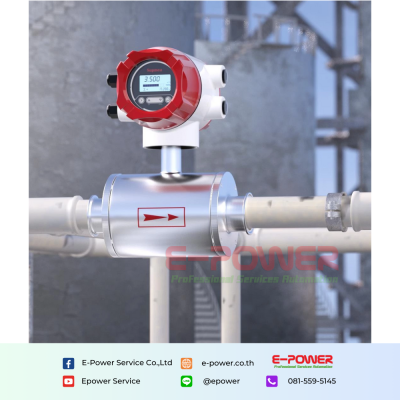

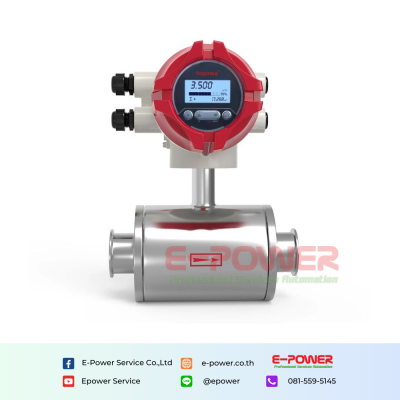

SUP-LDG Sanitary electromagnetic flowmeter for food processing

Electromagnetic flowmeter is only applicable to measure the flow of conductive liquid, which is wide used in water supply, sewage water measuring, industry chemical measuring etc. The remote type is with high IP protection class and can be installed in different locations for the transmitter and converter. Output signal can pulse,4-20mA or with RS485 communication.

āļˆāļģāļ™āļ§āļ™
Product description

Characteristics

  • Accuracy:  Âą0.5%ïžŒÂą2mm/s(flowrate<1m/s)
  • Theoretical value: Water: Min. 20ΞS/cm; Other liquid: Min. 5ΞS/cm
  • Recommended value: ïžž30ΞS/cm
  • Flange: ANSI/JIS/DIN DN10600
  • Ingress protection: IP65

Specification

Product Electromagnetic flow meter
Model SUP-LDG
Diameter nominal DN15~DN1000
Nominal pressure 0.6~4.0MPa
Accuracy Âą0.5%ïžŒÂą2mm/s(flowrate<1m/s)
Liner material PFA,F46,Neoprene,PTFE,FEP
Electrode material Stainless steel SUS316L, Hastelloy C, Titanium,
  Tantalum Platinum-iridium
Medium temperature Integral type: -10°C~80°C
 Split type: -25°C~180°C
Ambient Temperature -10°C~60°C
Electrical conductivity Water 20ΞS/cm other medium 5ΞS/cm
Structure typeTegral type, split type
Ingress protection IP65
Product standardJB/T 9248-1999 Electormagnetic Flowmeter
