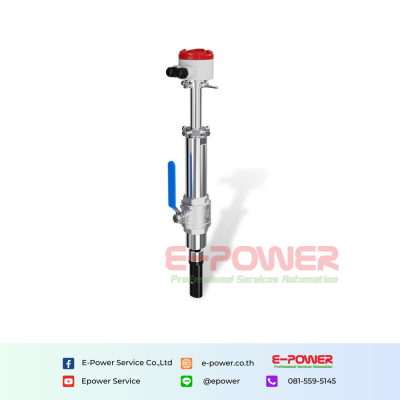

SUP-LDG Insertion type electromagnetic flowmeter
Supmea electromagnetic BTU meters accurately measure the thermal energy consumed by chilled water in British thermal units (BTU), which is a basic indicator for measuring thermal energy in commercial and residential buildings. BTU meters are usually used in commercial and industrial as well as office buildings for chilled water systems, HVAC, heating systems, etc.
āļāļģāļāļ§āļ
Product description
Download
Characteristics
- Size: DN100mm-DN3000mm
- Nominal Pressure: 1.6MPa
- Accuracy: 1.5%
- Probe: ABS, Polyurethane
- Electrode: SUS316L, Hastelloy B, Hastelloy C
Specification
| Size | DN100mm-DN3000mm | |
| Nominal Pressure | 1.6 Mpa | |
| Accuracy | 1.5% | |
| Probe | ABS, Polyurethane | |
| Electrode | SUS316L, Hastelloy B, Hastelloy C | |
| Structure Type | Integral type, remote type | |
| Medium Temperature | -20~+80degC | |
| Ambient Temperature | -20~+60degC | |
| Ambient Humidity | 5~100%RH(Relative humidity) | |
| Measuring Range | Max 15m/s | |
| Conductivity | >5us/cm | |
| Protection Class | IP65(Standard); IP68(Optional for remote type) | |
| Process Connection | 2'' Thread(Standard), 2'' Flange(Optional) | |
| Output Signal | 4-20mA/Pulse | |
| Communication | RS485(Standard), HART(Optional), GPRS/GSM(Optional) | |
| Power Supply | AC220V(Can be used for AC85-250V) DC24V(Can be used for DC20-36V) DC12V(Optional), Battery powered 3.6V(Optional) | |
| Power Consumption | <20W | |
| Alarm | Upper Limit Alarm / Lower Limit Alarm | |
| Self-diagnosis | Empty Pipe Alarm, Exciting Alarm | |
