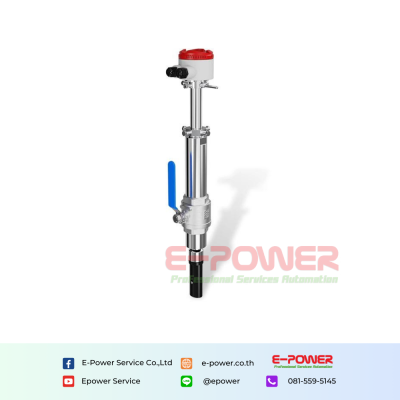

SUP-LDG Insertion type electromagnetic flowmeter
Quantity
Product description
Download
Characteristics
- Size: DN100mm-DN3000mm
- Nominal Pressure: 1.6MPa
- Accuracy: 1.5%
- Probe: ABS, Polyurethane
- Electrode: SUS316L, Hastelloy B, Hastelloy C
Specification
| Size | DN100mm-DN3000mm | |
| Nominal Pressure | 1.6 Mpa | |
| Accuracy | 1.5% | |
| Probe | ABS, Polyurethane | |
| Electrode | SUS316L, Hastelloy B, Hastelloy C | |
| Structure Type | Integral type, remote type | |
| Medium Temperature | -20~+80degC | |
| Ambient Temperature | -20~+60degC | |
| Ambient Humidity | 5~100%RH(Relative humidity) | |
| Measuring Range | Max 15m/s | |
| Conductivity | >5us/cm | |
| Protection Class | IP65(Standard); IP68(Optional for remote type) | |
| Process Connection | 2'' Thread(Standard), 2'' Flange(Optional) | |
| Output Signal | 4-20mA/Pulse | |
| Communication | RS485(Standard), HART(Optional), GPRS/GSM(Optional) | |
| Power Supply | AC220V(Can be used for AC85-250V) DC24V(Can be used for DC20-36V) DC12V(Optional), Battery powered 3.6V(Optional) | |
| Power Consumption | <20W | |
| Alarm | Upper Limit Alarm / Lower Limit Alarm | |
| Self-diagnosis | Empty Pipe Alarm, Exciting Alarm | |
