Flexem F010
Display: 9.7” 4:3 TFT LCD
Resolution: 1024×768
Enclosure Material: Zinc alloy + Engineering plastic
Cutout Dimensions: 230mm×180mm

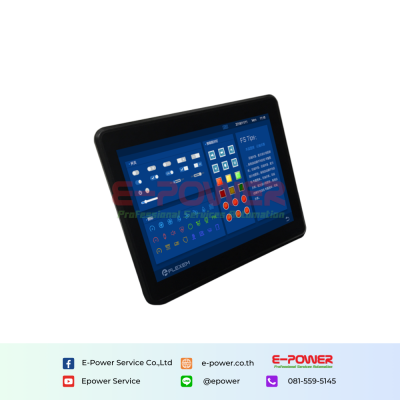

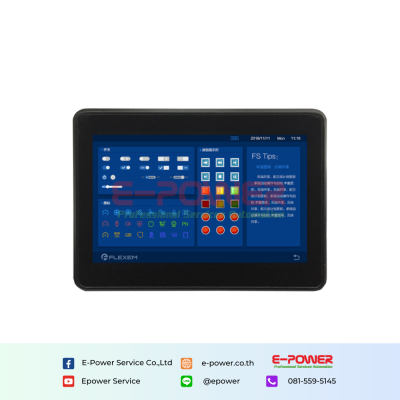

Flexem F010 capacitive touchscreen, featuring a 9.7" multi-touch capacitive touchscreen, high-definition high-brightness full-view display, 1024x768 resolution, 16-bit colors, high-performance CPU, high-capacity storage, and 1 Ethernet port, multi-touch gestures supported, provides a sleek and smoother touch-and-control solution.
จำนวน
รายละเอียดสินค้า
Specs
Hardware
| Display | 9.7" 4:3 TFT LCD |
| LCD Viewing Angles (T/B/L/R) | 85'/85'/85'/85' |
| Resolution | 1024×768 |
| Colors | 16-bit |
| Brightness | 350 cd/m² |
| Touch Panel | Glass + Glass projective multi-touch capacitive touchscreen |
| CPU | 600MHz ARM Cortex-A8 |
| Memory | 128M Flash + 128M DDR3 |
| Ethernet Port | 1* 10M/100M self-adaptive |
| USB Port | 1* USB slave 2.0 port, 1* USB host 2.0 port |
| Program Download Method | USB slave / Flash drive / Ethernet |
| Serial Port | COM1: RS232/RS485/RS422; COM2/COM4: RS485; COM3: RS232 |
Electrical
| Rated Power | < 8W |
| Rated Voltage | DC24V, operational range: DC 9V~28V |
| Power Protection | Lightning surge protection |
| Power Interruption Tolerance | < 5mS |
| Certification | EN61000-6-2:2005 and EN61000-6-4:2007 standards certified; RoHS certified; lightning surge ± 1 kV, group pulse ± 2 kV; electrostatic contact 4 kV, air discharge 8 kV |
Environmental
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C |
| UV Resistance | Operating in high UV environment is prohibited (e.g., in direct sunlight) |
| Environmental Humidity | 10~90%RH (non-condensing) |
| Vibration Endurance | 10~25Hz (X/Y/Z direction 2G/30 minutes) |
| Cooling Method | Natural air cooling |
Mechanical
| Protection Level | IP65 (with flush panel cabinet installation), Rear: IP20 |
| Enclosure Material | Zinc alloy + Engineering plastic |
| Cutout Dimensions | 230mm×180mm |
| Dimensions | 247mm×197mm×31.5mm |
| Weight | About 1100g |

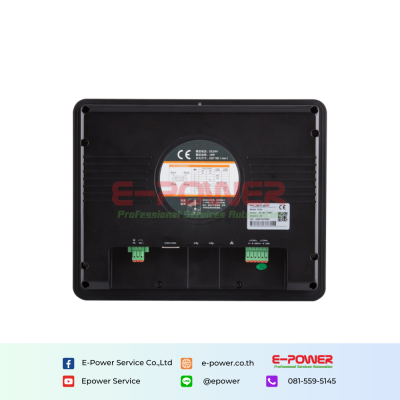

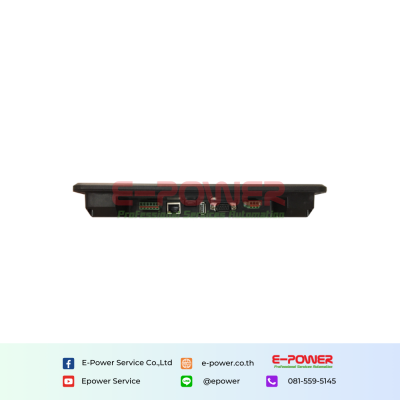

Port
Power Terminal (Pin1~3 from left to right)
| Pin1 | FG |
| Pin2 | 0V |
| Pin3 | DC24V |
DB9 Serial Terminal
| Pin1 | Rx-(B) |
| Pin2 | RxD (COM1 RS232) |
| Pin3 | TxD (COM1 RS232) |
| Pin4 | Tx- |
| Pin5 | GND |
| Pin6 | Rx+(A) |
| Pin7 | RxD (COM3 RS232) |
| Pin8 | TxD (COM3 RS232) |
| Pin9 | Tx+ |
485 Terminal (Pin1~6 from left to right)
| Pin1 | A+(COM2) |
| Pin2 | B-(COM2) |
| Pin3 | GND |
| Pin4 | A+(COM4) |
| Pin5 | B-(COM4) |
| Pin6 | GND |
Size
