PRODUCT DESCRIPTION

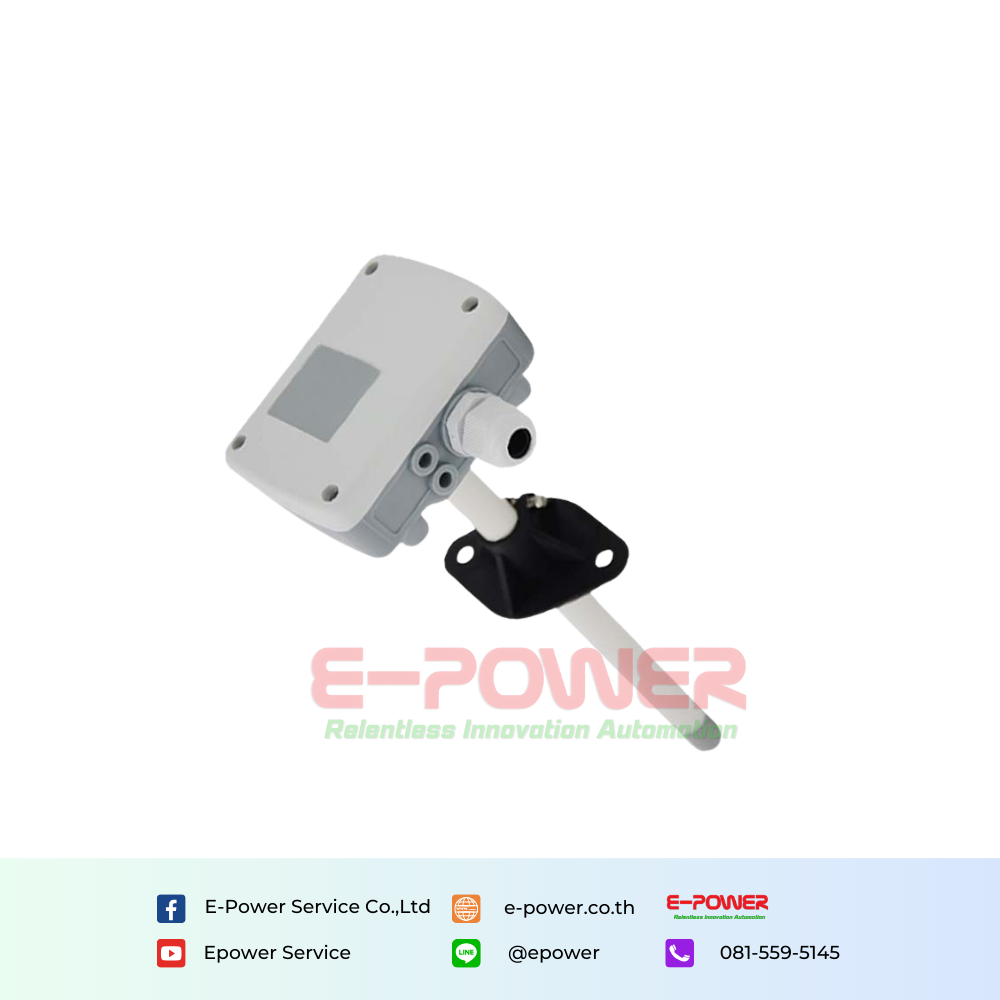

Rika RK100-05 Pipe Wind Speed Sensor is designed on the basis of the principle of hot-wire, the probe and housing adopt resistance to high temperature and anti-corrosion materials . In the bad environment, it also can work stablely and reliably.It can quickly and accurately tiny air flow measurement. The product has realized high precision and high resolution through internal linear compensation and temperature calibration, and long term stability is extremely good, which should be installed directly.
SPECIFICATIONS
| Item | Specification |
| Output | 4-20mA,0-10V,RS485,0-5V |
| Supply | 12-24VDC |
| Range | 0-5m/s,0-10m/s,0-20m/s,0-30m/s |
| Response time | <1s |
| Accuracy(0-50) | Âą3%FS |
| Resolution | <0.05m/s |
| Power consumption | <80mA@24VDC(4-20mA) <60mA@24VDC(RS485,0-5V,0-10V) |
| Long-term stability | Âą0.1m/s per year |
| Display | optional |
| Ingress Protection | IP55 |
| Operating Temperature | -20°C-+70°C |
| Main material | ABS |
| Probe length | 210mm typ., Other length can be customized |
| Storage condition | 10°C-50°C@20%-90%RH |
Product Catalogue: Rika RK100-05 HVAC Pipe Wind Speed Sensor
Rika
Rika Sensor
Rika RK100-05 HVAC Pipe Wind Speed Sensor
RK100-05
HVAC Pipe Wind Speed Sensor
HVAC
Wind Speed Sensor
