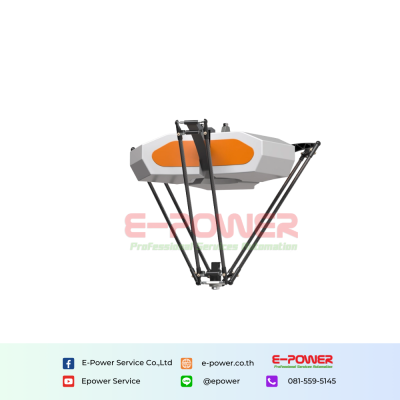

Robot Phoenix BAT2000M-S15 Delta Robot
This high speed delta robot has the strong power and the superior operational efficiency of agile with high speed. The high positioning accuracy is up to 0.1mm and the strong load capacity can reach 15kg. These contributes to a high-speed and high-precision flexible production of our high speed delta robot.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of BAT2000M-S15 High Speed Delta Robot
- Load: 15kg
- Diameter of working space: 2000mm
- Re-positioning accuracy: 0.1mm
- Number of axes: 4
Specification of BAT2000M-S15 Delta Robot
| Robot Model | Bat2000M-S15 |
| Rated Load | 15kg |
| Working Space Diameter | 2000mm |
| Number of Axles | 4 |
| Repeated Positioning Accuracy | 0.1mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | 0.05 |
| Maximum Speed | 10m/s |
| Maximum Acceleration | 150m/s2 |
| Power Supply Voltage | three-phase AC380V Âą 10%, 50/60HZ |
| Rated Power | 6.1kW |
| Ambient Temperature | 0-45°C |
| Safety | has monitoring, emergency stop and safety functions |
| Weight | 220kg |
| Protection Grade | IP54 |
