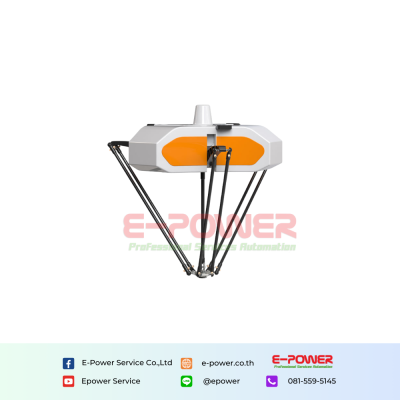

Robot Phoenix BAT1600-S6 Delta Robot
Bat1600-S6 delta robot is a 4-axis parallel robot with a rated payload of 6kg, which has the characteristics of high speed and precision, small footprint and strong rated power. It contributes to a flexible production during high precision and high speed manufacturing lines.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of BAT1600-S6 Delta Robot
- The rated payload is 6kg
- The working space diameter is 1600mm
- The repositioning accuracy is 0.1mm
- The maximum speed is 10m/s
- The rated power is 6kW
Specification of BAT1600-S6 Delta Robot
| Robot Model | BAT1600-S6 |
| Rated Load | 6kg |
| Maximum Load | 14kg |
| Working Space Diameter | 1600mm |
| Number of Axles | 4 |
| Repeated Positioning Accuracy | 0.1mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | 0.2 ° |
| Maximum Speed | 10m/s |
| Power Supply Voltage | three-phase AC380V Âą 10%, 50/60HZ |
| Rated Power | 6kW |
| Weight | 155kg |
| Protection Grade | IP54 |
