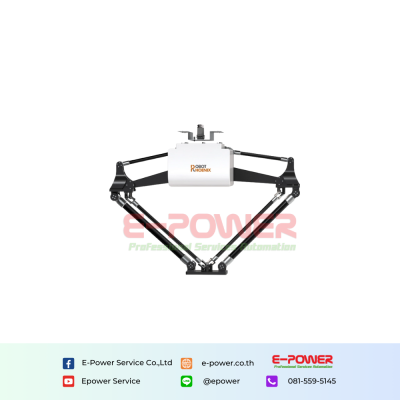

Robot Phoenix BAT1300B-S50 Heavy Load Delta Robot
Bat1300B-S50 delta robot is a 2-axis parallel robot with a rated payload of 50kg, which has the characteristics of high speed and precision, small footprint and strong rated power. This type of industrial 2D delta robot wins favor of industrial robot supplier and contributes to a flexible production during high precision and high speed manufacturing lines.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of BAT1300B-S50 Heavy Load Delta Robot
- The rated payload is 50kg
- The working space diameter is 1300mm
- The repositioning accuracy is 0.02mm
- The maximum speed is 2m/s
- The rated power is 3.9kW
Specification of BAT1300B-S50 Heavy Load Delta Robot
| Robot Model | BAT1300B-S50 |
| Rated Load | 50kg |
| Working Space Diameter | 1300mm |
| Number of Axles | 2 |
| Repeated Positioning Accuracy | 0.02mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | / |
| Maximum Speed | 2m/s |
| Power Supply Voltage | three-phase AC380V Âą 10%, 50/60HZ |
| Rated Power | 3.9kW |
| Weight | 200kg |
| Protection Grade | IP54 |
