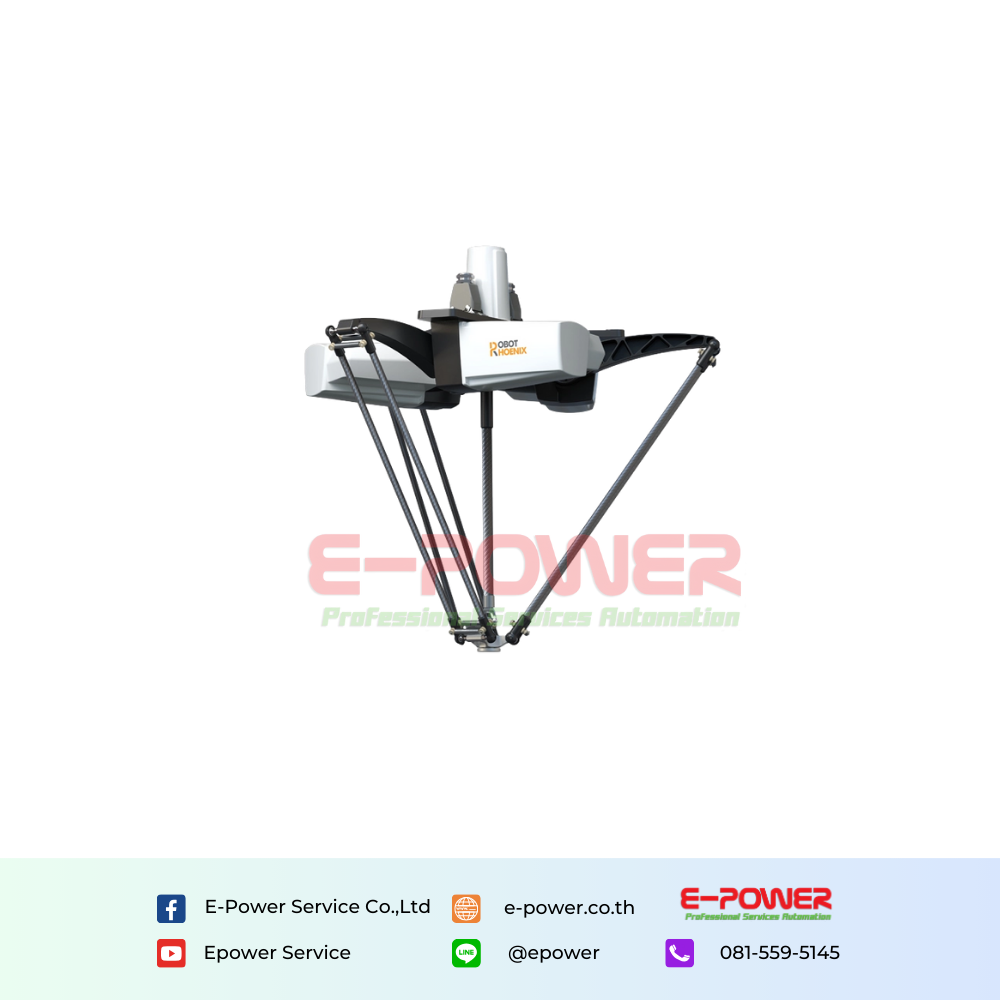

Robot Phoenix BAT1100-S3 Delta Robot
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
Bat1100-S3 delta robot is a 4-axis parallel robot with a rated payload of 3kg, which has the characteristics of high speed and precision, small footprint and strong rated power. The delta style robot is very popular among industrial robot manufacturing companies, contributing to a flexible production during high precision and high speed manufacturing lines.
āđāļāļĢāļāļāđ: Robot Phoenix
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of BAT1100-S3 Delta Robot
- The rated payload is 3kg
- The working space diameter is 1100mm
- The repositioning accuracy is 0.08mm
- The maximum speed is 10m/s
- The rated power is 3.4kW
Specification of BAT1100-S3 Delta Robot
| Robot Model | BAT1100-S3 |
| Rated Load | 3kg |
| Maximum Load | 12kg |
| Working Space Diameter | 1100mm |
| Number of Axles | 4 |
| Repeated Positioning Accuracy | 0.08mm |
| Repeated Positioning Accuracy of four Axis Angle (°) | 0.2° |
| Maximum Speed | 10m/s |
| Power Supply Voltage | three-phase AC380V Âą 10%, 50/60HZ |
| Rated Power | 3.4kW |
| Weight | 60kg |
| Protection Grade | IP54 |
