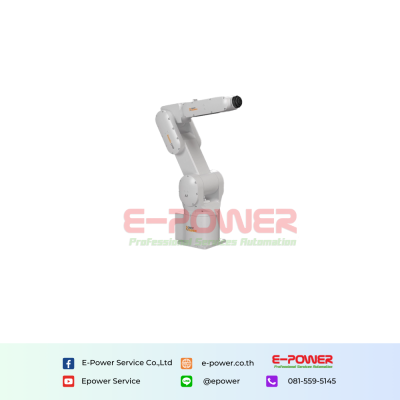

Robot Phoenix Mantis1000-A7 6-Axis Robot
Mantis series 1000-A7 six-axis robot has a rated payload of 7kg. The robot has six axis and it is developed for complex applications with multiple degrees of freedom. This six axis robot has graphical operation functions and is simple to program and use.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of Mantis1000-A7 6-Axis Robot
- Payload is 7kg
- Working radius is 1000mm
- 6 axes
- Protection grade IP54
Specification of Mantis1000-A7 6-Axis Robot
| Robot Model | Mantis1000-A7 | ||
| Load | 7kg | ||
| Working Radius | 1000mm | ||
| Number of Axles | 6 | ||
| Motion | Axial Motion | Scope of Work | Maximum Speed |
| A1 Joint: Rotation of the First Mechanical Arm | -175°-+175° | 240°/s | |
| A2 Joint: Swing of the Second Mechanical Arm -123°-+97° | -90°-+126° | 225°/s | |
| A3 Joint: Swing of the Third Mechanical Arm -66°-+201° | -201°-+66° | 407°/s | |
| A4 Joint: Rotation of the Fourth Mechanical Arm | -180°-+180° | 389°/s | |
| A5 Joint: Swing of the Wrist Component -118°-+118° | -120°-+120° | 487.5°/s | |
| A6 Joint: Clamp End Rotation | -360°-+360° | 765°/s | |
| Integrated Signal Source | 12 Signals Are Set at the Wrist | ||
| Integrated Air Supply | 4-way Air (5bar) is Set at Wrist | ||
| Repetitive Positioning Accuracy | 0.02mm | ||
| Robot Installation | Table/Ceiling mounting | ||
| Degree of Protection | IP54 | ||
| Dimensions of Robot Base | 250mmÃ250mm | ||
| Robot Height | 1523.5mm | ||
| Weight | 64kg | ||
