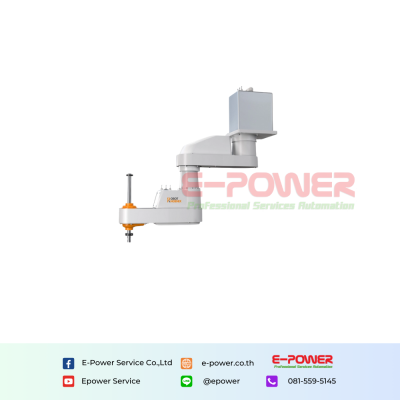

Robot Phoenix Python550F-B3 SCARA Robot
Python 550F-B3 SCARA Robot is a 4-axis robot with a maximum payload of 3kg. It has superior precision, speed, linearity and verticality performance. It can quickly and accurately complete operations such as gluing, assembly, loading, shifting, packaging and so on.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Features of Python550F-B3 SCARA Robot
- Payload is 3kg
- Working diameter is 1100mm
- Ceiling mounting
- Protection grade IP54
Specification of Python550F-B3 SCARA Robot
| Robot Model | Python550F-B3 | |
| Maximum Operating Speed | Joint 1 and 2 | 7400mm/s |
| Joint 3 | 1100mm/s | |
| Joint 4 | 2600°/s | |
| Repeated Positioning Accuracy | Joint 1 and 2 | Âą0.02mm |
| Joint 3 | Âą0.01mm | |
| Joint 4 | ¹0.01° | |
| Load | Rated | 1kg |
| Maximum | 3kg | |
| Measure | Installation Hole Diameter | 150Ã160mm; 4-Ï11 |
| Z-axis Diameter | 16mm | |
| Weight | 20kg (excluding cable) | |
| Installation Type | Ceiling installation | |
| Interface | I/O Interface | |
| Ethernet | 2 | |
| USB | 2 | |
| Ethercat | 1 | |
| RS232/RS485 | 1 | |
