Robot Phoenix Robot Visual Module 2D

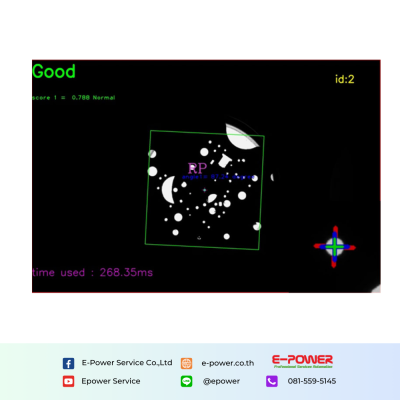

2D vision is a robot module that provides results based on the characteristics of contrast in greyscale or colored images.

āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Features of Robot Visual Module 2D

  • No-contacting measurement.
  • Covering a wide spectral response range.
  • WorkING steadily for a long time.
  • Processing functions like positioning, measurement and defect detection.

Specification of Robot Visual Module 2D

ModelMV-CA013-20GMMV-CA013-20GCMV-CA013-20GN
Parameter1.3 megapixel 1/2 CMOS Gigabit Ethernet industrial area scan camera.
Performance
Sensor TypeCMOS, Global shutter
Sensor ModelOnSemi PYTHON1300
Pixel Size4.8 Âĩm × 4.8 Âĩm
Chart Size1/2"
Resolution1280 × 1024
Max Framerate Rate90 fps @1280 × 1024
Dynamic Range59.6 dB
Signal to Noise Ratio39.8 dB
Gain0 dB ~ 15 dB
Time of Exposure38 Ξs ~ 10 sec62 Ξs ~ 10 sec38 Ξs ~ 10 sec
Shutter ModeSupport mode: automatic exposure, manual exposure, one-click exposure
ColorBlack & WhiteColorNear-infrared
Pixel FormatMono
8/10/10Packed/12/12Packed
Mono 8/10/12
Bayer RG
8/10/10Packed/12/12Packed
YUV422Packed
YUV422_YUYV_Packed
RGB 8
Mono
8/10/10Packed/12/12Packed
BinningSupport: 1×11×21×42×12×22×44×14×24×4
DownsaplingSupport: 1×12×2
Mirror ImageSupport horizontal and vertical mirroring
Electrical Specification
Data InterfaceGigabit Ethernet(1000Mbit/s) Compatible: Fast Ethernet(100Mbit/s)
Digital I/O6-pin P7 connector provides power supply and I/O: 1 optocoupler isolation input (Line0), 1 optocoupler isolation output (Line1), 1 bidirectional configurable and non-isolation I/O (Line 2).
Power Supply12 VDC: PoE power is supported
Typical Power Consumption2.7W@12VDC
Structure
Lens MountC-Mount
Overall dimension29mm×29mm×42mm
WeightAbout 68g
IP GradeIP30 (Properly install the lens and cables)
TemperatureOperating temperature: 0~50storage temperature: -30~70
Humidity20%~80%RH, non-condensing
General Specifications
SoftwareMVS or third-party support: GigE Vision protocol software
Operating SystemWindows XP/7/1032/64bits, Linux 32/64bits, MacOS 64bits
Protocol/StandardGigE VisionV2.0GenICam
CertificateCEFCCRoHSKC
