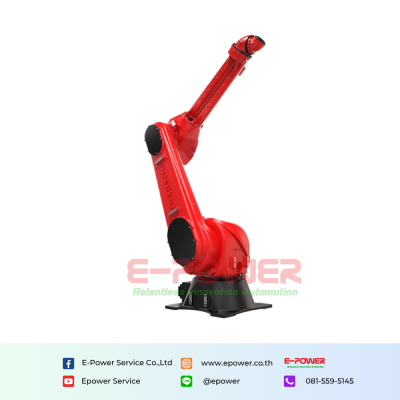

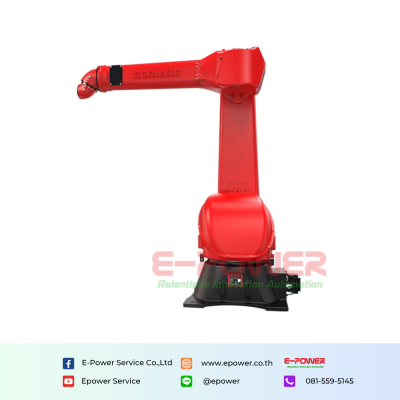

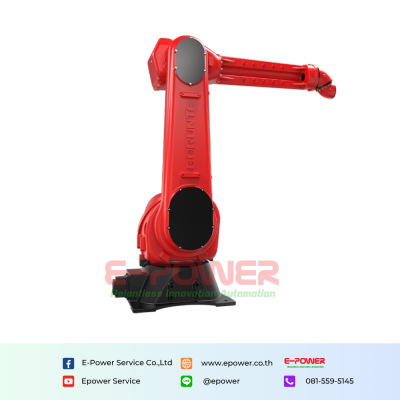

Borunte BRTIRSE2013F Six Axis Industrial Spraying Robot

MODEL :  BRTIRSE2013F

PRODUCT DETAILS

The six-axis robot BRTIRSE2013F is an explosion-proof spraying robot with a 2,000mm super long arm span and a maximum load of 13kg. The shape of robot is compact, and each joint is installed with a high-precision reducer and the high-speed joint speed can carry out flexible operation, it can be applied to a wide range of spraying dust industry and accessories handlinh field. The protaction grade reaches IP65. Dust-proof abd water-proof. The repeat positioning accurancy is ±0.05mm.

Main Specification

Arm Length (mm) : 2000

Repeatability (mm) : ±0.05mm

Loading Ability (kg) : 13

Power Source (kVA) : 6.38

Weight (kg) : About 400

Product Features

1.It uses a servo motor construction with a planetary reducer and RV reducer, which has strong bearing capacity, a wide operating range, quick speed, and excellent precision.

2.The rear motor design is used with four axes and five to six shafts to create the hollow wire at the end.

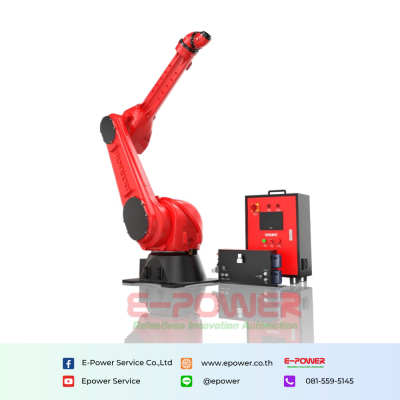

3.The control system's portable conversational operator is simple to use and ideal for production.

4.The robot body uses safe and ecologically friendly partial internal wiring.

Working Condition Of Six Axis Industrial Spraying Robot

Reducers of Six Axis Industrial Spraying Robot

The robot uses planetary and RV reducers as its reducers.

The primary characteristics of an RV reducer are its:

1.compact mechanical construction;

2.light volume;

3.small size;

4.high efficiency;

5.good heat exchange performance;

6.quick heat dissipation;

7.high transmission speed ratio, plenty of torque, and a high overload bearing capacity;

8.Reliable operation;

9.Widely applicable;

10.Safe and secure.
