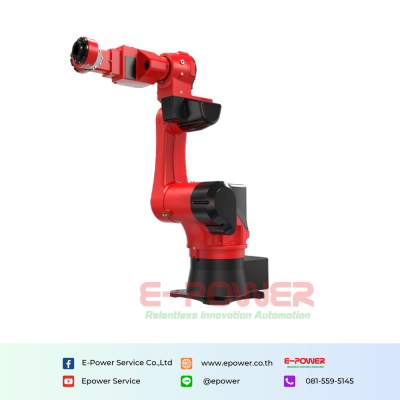

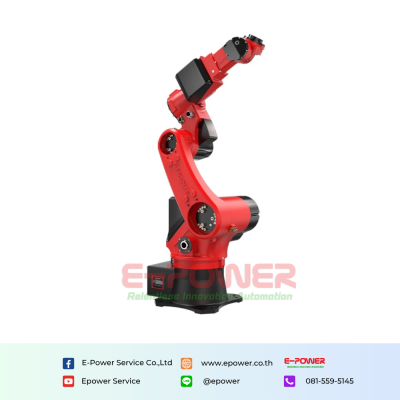

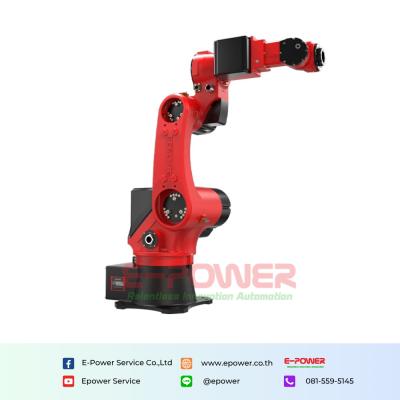

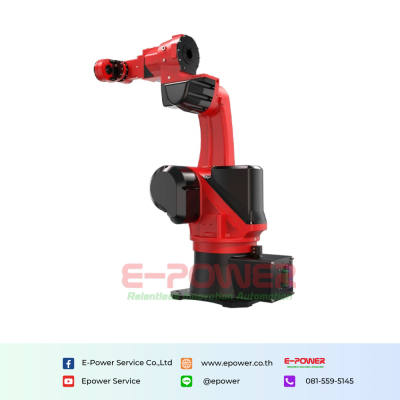

Borunte BRTIRPH1210A Lightweight Industrial Grinding Robot

MODEL :  BRTIRPH1210A

PRODUCT DETAILS

BRTIRWD1506A is a six-axis robot developed by BORUNTE for use in the welding, deburring, and grinding application industries. It is compact in shape, small in size, light in weight, with a maximum load of 10kg and an arm span of 1225mm. Its wrist adopts a hollow structure, which makes the wiring more convenient and the movement more flexible. The first, second and third joints are all equipped with high-precision reducers, and the fourth, fifth and sixth joints are all equippws with high-precision gear structures. The high-speed joint speed enables flexiable operation. The protection grade reached Ip54. Dust-proof and water-proof. The repeat positioning accurancy is ±0.07mm.

Main Specification

Arm Length (mm) : 1225

Repeatability (mm) : ±0.07

Loading Ability (kg) : 10

Power Source (kVA) : 4.3

Weight (kg) : About 155

Product Features

1. Accuracy and repeatability: Polishing work often calls for extremely accurate movement and reliable performance. Industrial robots can position and maneuver with millimeter-level precision, resulting in consistent outcomes across all tasks.

2. Automation and efficiency: Increasing production efficiency is one of the key goals of industrial robots. The polishing process is often laborious and time-consuming, but robots can do duties quickly and reliably, increasing the manufacturing line's total effectiveness.

3. Flexibility and adaptability: Industrial grinding robots often need to adapt to a range of workpiece forms, sizes, and materials. Robotic end effectors often contain flexible and movable features that let them to adapt to various workpiece surfaces and change the grinding force as necessary.

4. Sensing and feedback: Some sophisticated industrial robots include sensors and vision systems that can detect the form and unevenness of the workpiece surface. The robot may alter its tactics in real-time during the polishing process to attain the desired surface quality by using these feedback data for adaptive control.

5. Safety: Safety is essential since polishing operations may entail high-speed rotating equipment and robot moving parts. To safeguard the safety of humans while in operation, industrial robots frequently contain safety features including protective shields, collision detection, and emergency stop buttons.

Working Condition of Lightweight Industrial Grinding Robot
