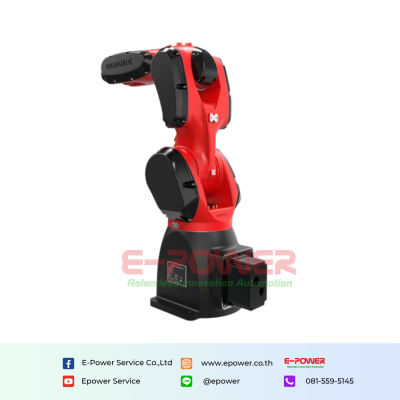

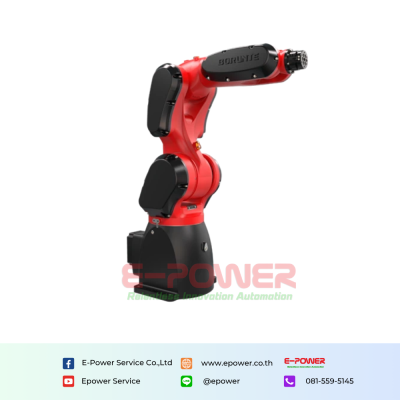

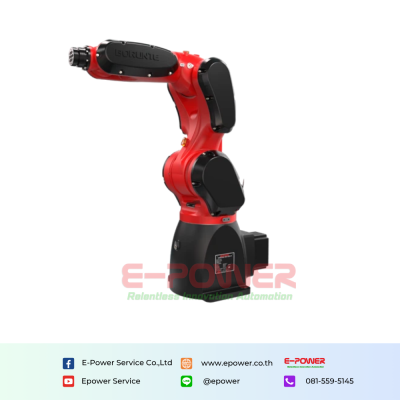

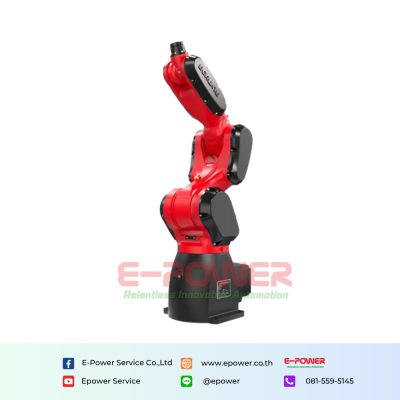

Borunte BRTIRUS0707A Efficient Six Axis Versatile Robot

MODEL :  BRTIRUS0707A

PRODUCT DESCRIPTION

Efficient Six Axis Versatile Robot is a multifunctional robot. The construction and form of the robot are small. There is a high-precision reducer in every joint. The high-speed joint speed can perform a variety of activities, including handling, grinding, assembling, and other tasks, in a constrained area. It may be installed in a variety of ways.

PRODUCT DETAILS

BRTIRUS0707A type robot is a six-axis robot that developed by BORUNTE for some monotonous, frequent and repaetitive long-term operations or operations in dangerous and harsh enviornmens. The maximum arm length is 700mm. The maximum load is 7kg. It's flexible with muitiple degrees of freedom. Suitable for polishing, assembling. painting,etc. The protection grade reached IP65. Dust-proof and water-proof.The repeat positioning accurancy is ±0.03mm.

Main Specification

Arm Length (mm) : 700

Repeatability (mm) : ±0.03

Loading Ability (kg) : 7

Power Source (kVA) : 2.93

Weight (kg) : About 55

Product Features

(1)Adopt a servo motor with a harmonic reducer construction, which has a small volume, a wide operating range, a quick speed, and high precision.
(2)The control system's portable conversation operator is
straightforward and simple to use, making it ideal for production.
(3)The robot body uses partly internal wiring, which is secure and responsible for the environment.

Applications of Efficient Six Axis Versatile Robot

(1) Material handling
(2) Assembly
(3) Grinding and polishing
(4) Cutting / deburring

Main technical parameters of Efficient Six Axis Versatile Robot
