Borunte BRTIRUS0401A Small Components Sorting Universal Machine

MODEL :  BRTIRUS0401A

PRODUCT DETAILS

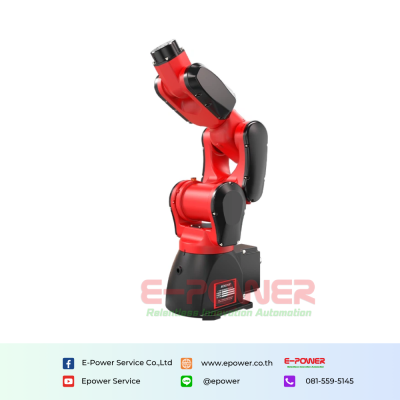

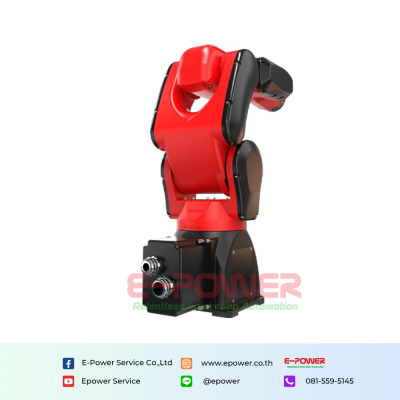

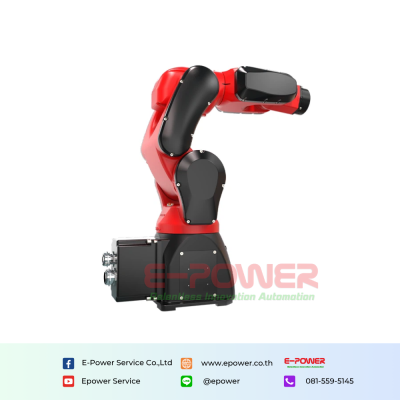

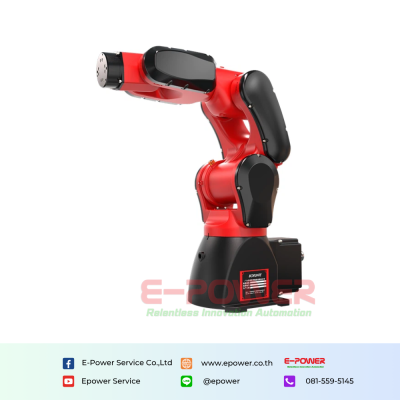

BRTIRUS0401A type robot is a six-axis robot that designed by BORUNTE for the operation environment of micro and small parts. It is suitable for small parts assembly, sorting, detection and other operations. The rated load is 1kg, the arm span is 465mm, and it has the highest level of operation speed and a wide range of operations among six-axis robots with the same load. It features high precision, high speed and high flexibility. The protection grade reaches IP54. Dust-proof and water-proof. The repeat positioning accurancy is ±0.06mm.

Main Specification

Arm Length (mm) : 465

Repeatability (mm) : ±0.06

Loading Ability (kg) : 1

Power Source (kVA) : 2.03

Weight (kg) : About 21

Features of Small Components Sorting Universal Machine

1. adopt servo motor with harmonic reducer structure, with small volume, large working range, fast speed and high accuracy.
2. the handheld conversational operator of the control system is simple and easy to learn, which is very suitable for production.
3. the robot body adopts partial internal wiring, which is safe and environmentally friendly.

High-speed motion: Small Components Sorting Universal Machine is capable of quick and accurate motions. The robot can execute jobs quickly because to the high speed and acceleration capabilities of each joint, increasing manufacturing efficiency. Robots can move quickly, which makes them ideal for tasks that need for quick handling and reaction, including fast-paced assembly line work.

Robust repeatability: Small Components Sorting Universal Machine is capable of achieving very consistent repeatability, which means they can precisely repeat the same motions and processes throughout several jobs. This quality is crucial for jobs like packing, quality inspection, and precision assembly that call for consistency and accuracy.

Environmental adaptability: Small Components Sorting Universal Machine is often quite excellent at adapting to their surroundings. They can function in a variety of working circumstances, including dry, damp, hot, and cold ones. To adapt to various adverse environments, the robot's joints and housing are frequently made to be dustproof, waterproof, and corrosion-resistant.
