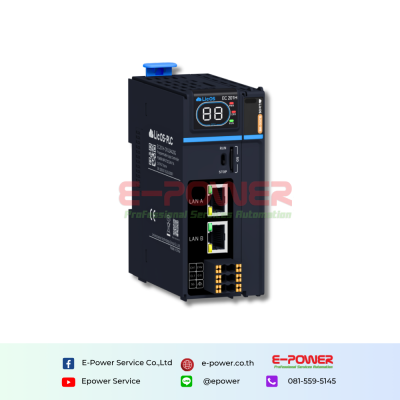

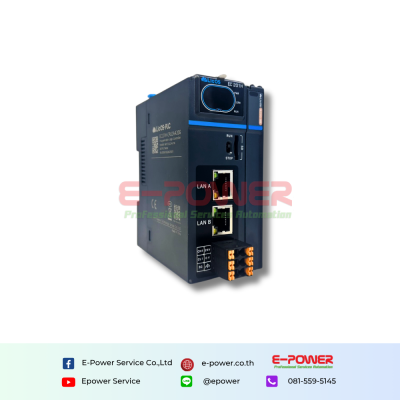

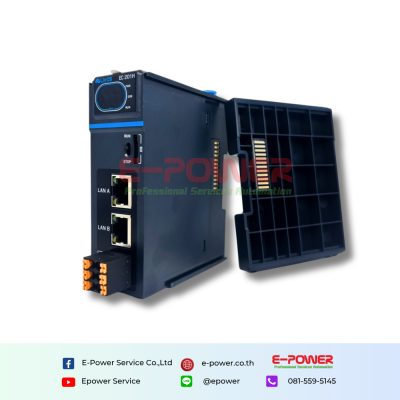

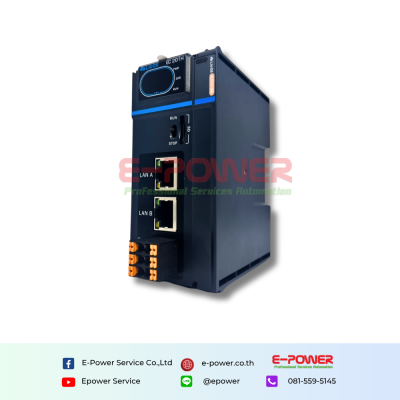

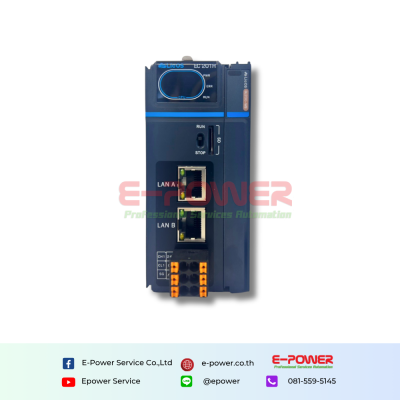

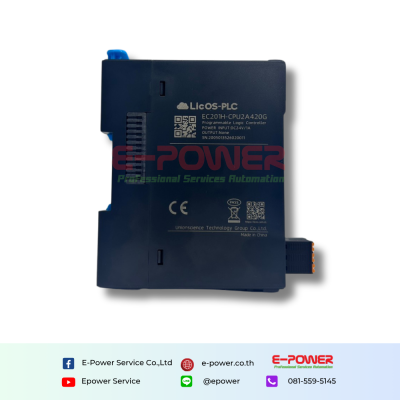

LicOS EC201H Small PLC Controller
āļāļģāļāļāļīāļāļēāļĒāļŠāļīāļāļāđāļēāđāļāļāļĒāđāļ
EC201H Small PLC Controller is a high-performance, CODESYS-based automation controller designed for modern industrial control and multi-axis motion applications.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Product Description
The EC201H Small PLC Controller is a high-performance, CODESYS-based automation controller designed for modern industrial control and multi-axis motion applications.- Performance & Processing: Equipped with a dual-core Arm 1.2 GHz CPU, 8 MB program memory, 16 MB data memory, and 512 KB power-down hold memory.
- I/O & Motion Control: Compatible with GL200 series I/O modules, supporting up to 8 I/O extensions (up to 32 remote racks), with 8-axis motion control (4ms cycle time).
- Extensive Connectivity: Integrates dual LAN ports (LAN A / LAN B) and supports EtherCAT, EtherNet/IP, Modbus TCP/RTU (4x Modbus RTU), RS485, CANopen (2x), MQTT, OPC UA, PROFINET, and WebVisu visualization.
- Standardized Programming: Fully supports IEC 61131-3 languages, including LD, FBD, IL, ST, SFC, and CFC.
Highlights at a glance
- EC201H-CPU2A420G
- Large 8M program and 16M data storage
- Built in 8 axis EtherCAT synchronous motion control
- 4ms short control cycle connect up to 32 EtherCAT slave devices
- Dual independent Ethernet ports LAN B dedicated for EtherCAT bus
- Rich RS485 and CAN communication interfaces
- Full support EtherNet IP Profinet Modbus MQTT protocols
- IO hot swap Webvisu remote monitor IP20 industrial grade
| Item | Specification | ||
| EC201S-CPU1A510G0808D | EC201H-CPU2A420G | ||
| Memory | Program | 4M | 8M |
| Data | 8M | 16M | |
| Power down hold | 512k | ||
| Performance | Bit operation | 0.008us | |
| Word operation | 0.040us | ||
| Floating point operation | 0.180us | ||
| Programming Languages | LD, ST, IL, FBD, SFC, CFC | ||
| Registers | Area I | 256k | |
| Area Q | 256k | ||
| Area M | 512k (power-down hold) | ||
| Body Digital IO | 8-channel source and drain inputs, support 1K high-speed interrupts | / | |
| 8-channel drain-type outputs, support clear, hold, and preset functions when application stops | / | ||
| Expansion Capability | Remote IO station | 32 | |
| Number of I/O modules | 8 | ||
| Pulse Axis | / | 8 axis | |
| EtherCAT Axis | / | 8 axis | |
| Typical values of axis control cycle | / | 4ms cycle 8 axis | |
| Module hot-swapping | Support | ||
| Interfaces | Network Interface and Function | 1 channels (10/100Mbps) LAN A LAN A : Ethernet, Ethernet/IP, Profinet/IO, ModbusTCP/UDP | 2 channels (10/100Mbps) LAN A, LAN B LAN A : Ethernet, Ethernet/IP, Profinet/IO, ModbusTCP/UDP LAN B : Ethernet, Ethernet/IP, Profinet/IO, ModbusTCP/UDP, EtherCAT |
| Serial communication | 4xRS485,1xRS232 | 4xRS485 | |
| CAN communication | 1xCAN | 2xCAN | |
| Backplane bus | Expandable with 8 IO modules of GL200 series | ||
| SD card | Maximum 32GB, can store user program and data, data update, user program update, firmware update | ||
| RTC | Pull-out battery compartment for replacing RTC clock battery (user-provided CR1220 coin cell) | ||
| Bus Protocol | EtherCAT | / | The CoE (PD0, SD0) supports up to 32 slave stations |
| Ethernet | TCP/IP, UDP, OPC UA Server, MQTT, Socket | ||
| Ethernet/IP | EtherNet/IP Scanner, EtherNet/IP Adapter | ||
| Profinet/IO | Master/Slave | ||
| CANopen | Master | ||
| Modbus TCP | Master/Slave | ||
| Modbus RTU | Master/Slave | ||
| Modbus UDP | Master/Slave | ||
| Free Protocol | Serial Port Free Protocol | ||
| Network Passthrough | Serial Port Network Passthrough | ||
| Visualization | Webvisu (Web Visualization) | ||
| IP rating | IP20 | ||
| Dimensions (WXHXD) | 40.0x105.0x85.0mm | ||
| Weight | / | / | |
