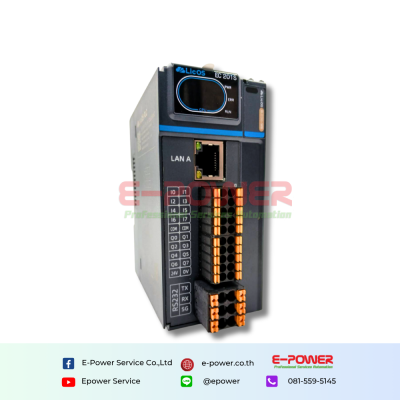

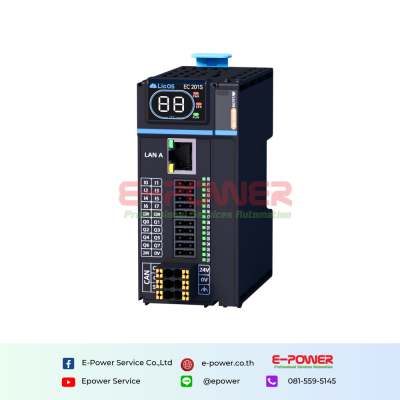

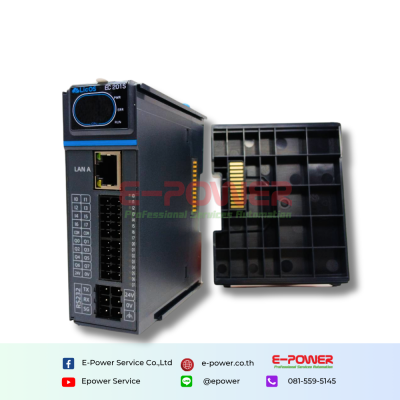

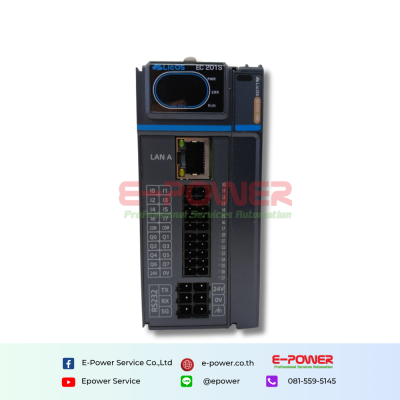

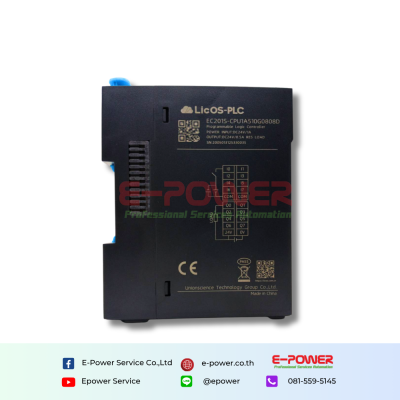

LicOS EC201S Small PLC Controller
คำอธิบายสินค้าแบบย่อ
EC201S Small PLC Controller is a high-performance, CODESYS-powered automation controller designed for modern industrial applications.
รายละเอียดสินค้า
ดาวน์โหลด
Product Description
The EC201S Small PLC Controller is a high-performance, CODESYS-powered automation controller designed for modern industrial applications.
- Performance & Processing: Powered by a dual-core Arm 1.2 GHz CPU with 4 MB program memory, 8 MB data memory, and 512 KB power-down hold memory.
- I/O Capabilities: Features onboard digital I/O (8 DI / 8 DO), supports GL200 series IO modules, and expands up to 8 IO extensions (up to 32 remote racks).
- Broad Protocol Support: Integrated communication supports EtherNet/IP, Modbus TCP/RTU (4x Modbus RTU), RS485/RS232, CANopen, MQTT, OPC UA, and PROFINET, alongside WebVisu visualization.
- Standardized Programming: Fully compliant with IEC 61131-3 languages, including LD, FBD, IL, ST, SFC, and CFC.
Highlights at a glance
- EC201S-CPU1A510G0808D
- 4M program and 8M data memory with power off data retention
- Fast 0.008 microsecond bit operation speed
- Onboard 8DI 8 NPN high speed IO support 1K interrupts
- Single 10 100M Ethernet plus RS485 CAN multi communication ports
- Compatible with GL200 expansion IO modules hot swap supported
- Support Modbus Profinet MQTT OPC UA industrial protocols
- Built in Webvisu remote monitoring IP20 compact design
| EC201S Series | ||
| ️ Model No. | EC201S-CPU1A410G0808D | EC201S-CPU1A500G0808D |
| Order No. | 20050131 | 20050132 |
| ️ General | ||
| Product Iteration | Fifth generation products | |
| Power Supply | 24V DC (19.2V DC~33V DC) | |
| Dimensions(W x H x D) | 40x105x85mm | |
| ️ Weight | 130g | |
| ️ Operating/Storage Temperature | -20°C ~ 60°C | |
| Working Ambient Humidity | 10%~90%RH, no condensation | |
| ️ Protection Grade | IP 20 | |
| ️ Altitude | Below 3000m | |
| Certifications | CE Certification | |
| Technical Parameters | ||
| Memory | Program | 4M |
| Data | 8M | |
| Power Down Hold | 512K | |
| Expandable Memory | Up to 32GB for storing user programs and data, data updates, user program updates, firmware updates | |
| ️ Bit Instruction Processing Speed | 8ns | |
| Diagnostic LED | 1x Power, 1x Running, 1x Failure | |
| RTC Internal Clock | Pull-out battery compartment for replacing RTC clock batteries | |
| CPU Body Integrated IO | Digital Input | 8x transistors (source/drain type), supports 1K high-speed interrupts |
| Digital Output | 8-channel leakage output (supports zeroing, hold, and preset functions when the application is stopped) | |
| Analog Input | / | |
| Analog Output | / | |
| Expansion Capabilities | Mainframe Module | 8 |
| Remote Rack | 32 | |
| Number Of Modules | 512 | |
| Compatible IO Series | GL200 | |
| Hot Standby Capability | Dual Power Redundancy | ️ Support |
| Module Hot-swap | ️ Support | |
| Communication Interface | Ethernet Port | LAN A is a 10/100Mbp independent network port |
| Serial Port | 4xRS485 | |
| CAN port | 1 | |
| ️ Note: EC201S-CPU1A500G0808D differs Serial Port: 4xRS485; 1xRS232 | CAN port: / | ||
| Communication Protocols | ||
| Ethernet | TCP/IP、UDP、OPC UA Server、MQTT、Socket | |
| EtherCAT | ️ | |
| Ethernet/IP | EtherNet/IP Scanner、EtherNet/IP Adapter | |
| Profinet/IO | Master/Slave | |
| CANopen | Master | / |
| Modbus TCP | Master/Slave | |
| Modbus RTU | Master/Slave | |
| Free Protocol | Serial port free protocol | |
| Network Pass-Through | Serial port network pass-through | |
| Motion Control Capability | / | |
| Operating Systems | Linux | |
| Programming Environment | Smart Control V5.0 | |
| Programming language | Support for IEC61131-3 standard programming languages (LD/FBD/IL/ST/SFC/CFC) | |
| WebVisu | ️ | |
