Haiwell TVbox: Large Screen Controller for Smart Industrial Systems
Introduction
In the era of Industry 4.0 revolution, managing and displaying data on large screens is crucial for industrial system control and real-time data monitoring. Haiwell TVbox is a large screen controller device designed to meet these needs, serving as part of the SmartLink core system that helps connect and manage various devices in industrial plants.
What is TVbox?
Haiwell TVbox is a Large Screen Controller that serves as a central hub for managing and displaying data from HMI, SCADA, PLC, surveillance cameras, and various Haiwell IoT devices on large screens for centralized system monitoring and control.
This device runs on Android operating system and can display high resolution up to 4K, allowing users to see data and images clearly. It also features a Welcome Screen function that helps enhance corporate image.
Key Features of Haiwell TVbox
Diverse Connectivity
- Local Network: Connect HMI, mobile phones, tablets, computers, TVs, and cameras within LAN network
- Internet: Support internet connection for remote access
- Concurrent Access: Allow multiple users to access simultaneously without requiring cloud SCADA or VNC connection
Data Management and System Integration
- Data Storage: Support data transmission and storage in public or private servers
- System Integration: Connect with ERP, MES systems or other applications via MQTT, OPC UA, HTTP, TCP
- Embedding: Ability to embed HMI display in other applications such as software and mobile apps
Smart Functions
- TTS (Text-to-Speech): Convert text to speech
- Communication System: Intercom function for internal system communication
- Audio and Video Playback: Support audio and video file playback
- Surveillance: Connect with surveillance cameras for real-time monitoring
- Barcode Scanning: Use mobile phone as barcode scanner to input data in HMI

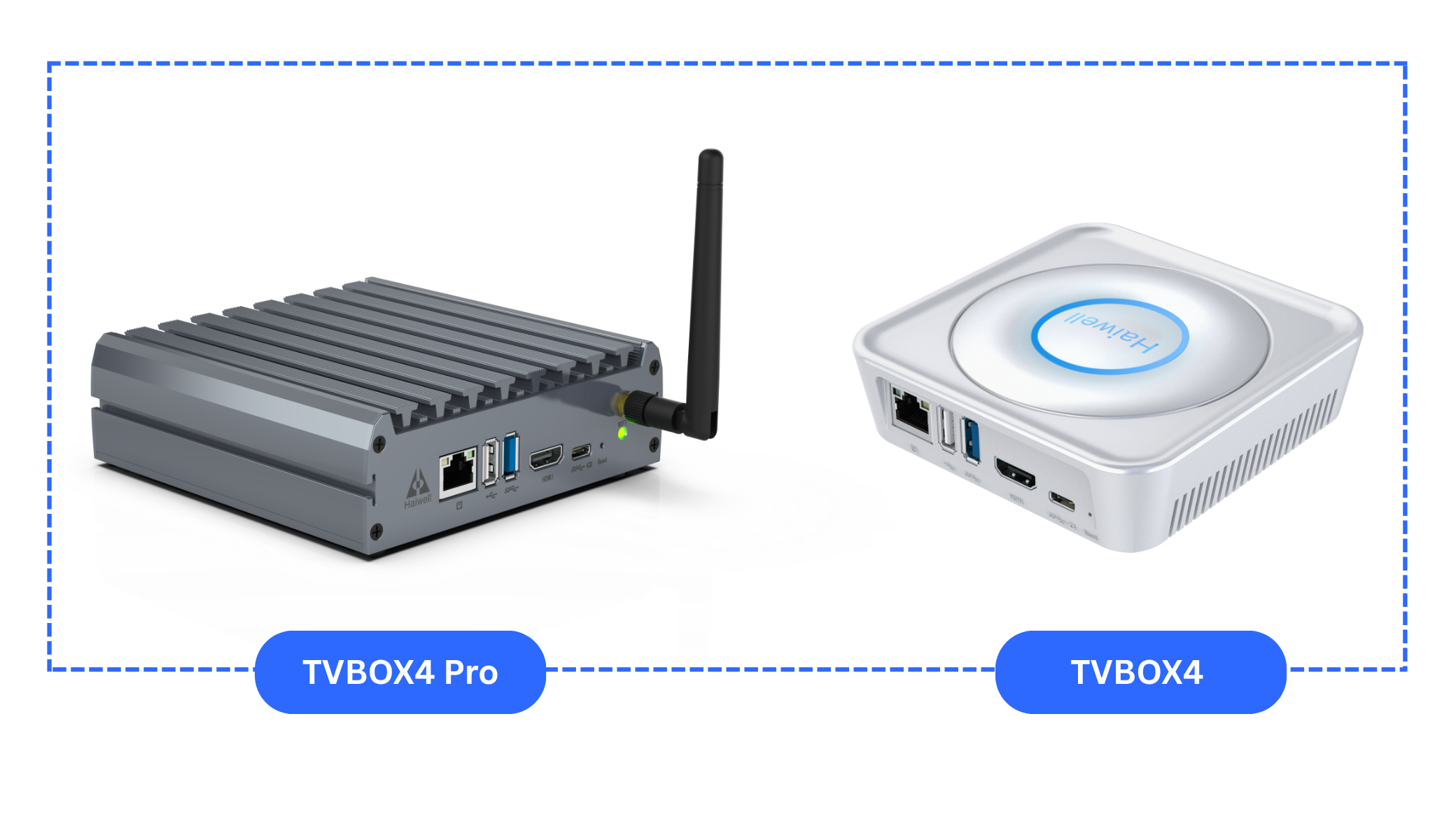

Haiwell TVbox Models
TVBOX4
- Picture Quality: 1080p (1K)
- Connectivity: HDMI 2.0 x 1 port
- Memory: Flash 4GB + RAM 4GB
- WiFi: Support 2.4GHz and 5GHz
- USB: USB 2.0 x 1 port, USB 3.0 x 1 port
- Network: Ethernet 10/100/1000Base-T
- Camera: Support 1 camera
- Dimensions: 112×30×112 mm
- Picture Quality: 4K Ultra HD
- Connectivity: HDMI 2.0 x 1 port
- Memory: Flash 8GB + RAM 4GB
- WiFi: Support 2.4GHz and 5GHz
- USB: USB 2.0 x 1 port, USB 3.0 x 1 port
- Network: Ethernet 10/100/1000Base-T
- Special Features: Support Web Engineering and third-party cloud access
- Camera: Support up to 3 cameras
- Dimensions: 133×44×133 mm
Combined-Screen Display
TVbox can combine images from multiple devices to display on large screen simultaneously in 4, 6, or 9 grid format, enabling simultaneous monitoring of various systems.
Large Electronic Display Board
With one TVbox, one TV, and multiple HMIs, you can easily create a large display system. Suitable for use in agricultural greenhouses, aquaculture, libraries, production plants, and other large screen data display applications.

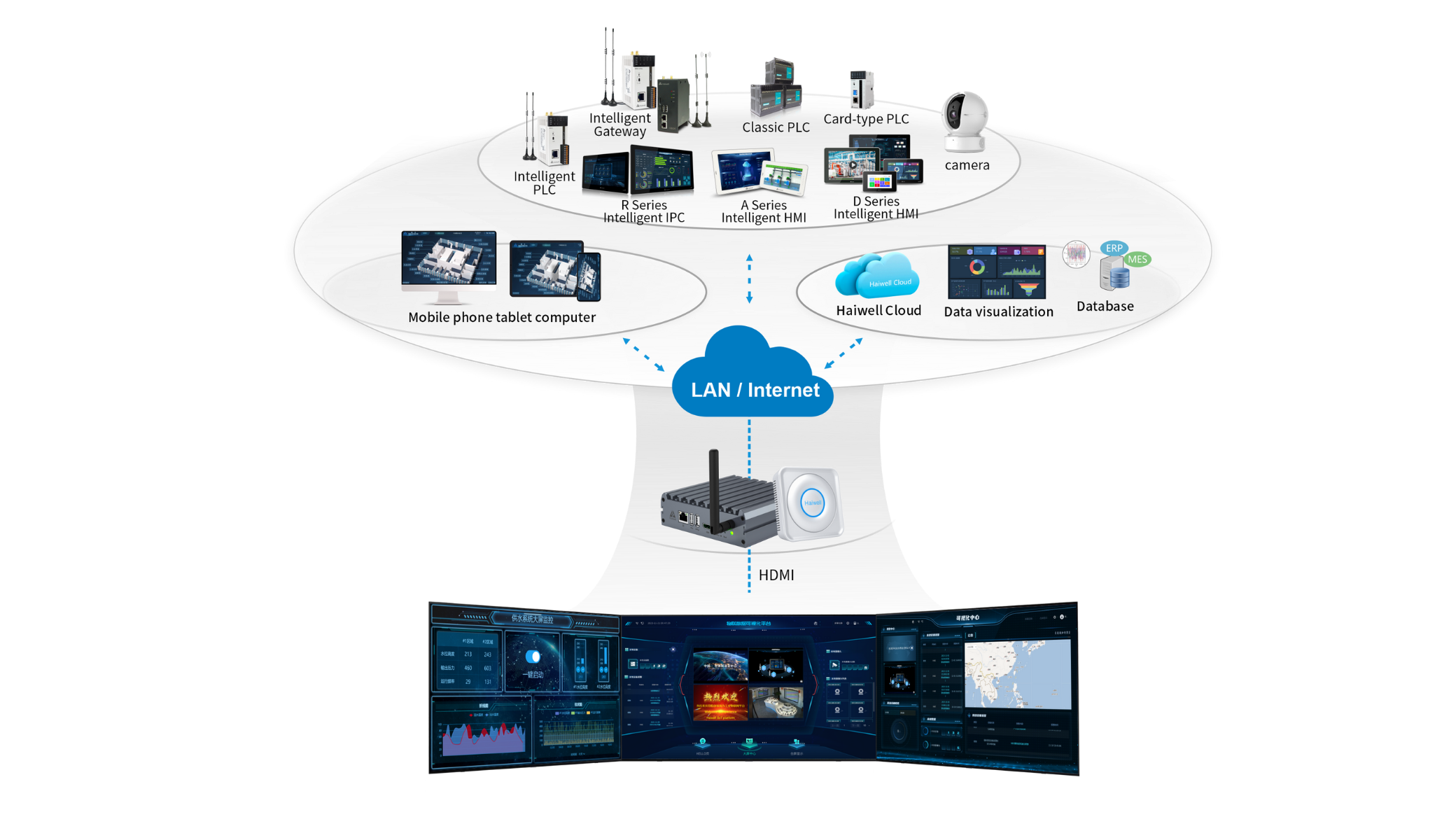

Smart Control Center
TVbox serves as the central hub for smart control by connecting HMI, Gateway, PLC, cloud platforms, data visualization systems, mobile phones, tablets, computers, TVs, cameras, and third-party ERP/MES systems.
Advantages of Using Haiwell TVbox
Ease of Use
- Control with mobile phone instead of TV remote, making it easier to use than traditional large screen systems
- Support remote access and A/B Key security mechanism
- Members can remotely access and control TVbox through cloud platforms and applications
Flexible Connectivity
- Support dual-band wireless WiFi 2.4GHz/5GHz
- Various connection ports including HDMI, USB, and Ethernet
- Can connect with various devices in Haiwell SmartLink system seamlessly
- Uses high-performance Quad-Core Cortex-A7 processor
- Support high resolution display up to 4K
- Large Flash memory for data storage and applications
Warranty and Support
Haiwell provides TVbox product support through:
- Regular firmware updates
- User manuals and technical documentation
- Technical support and after-sales service
- Haiwell Cloud platform supporting multiple operating systems
Haiwell TVbox is a comprehensive solution for controlling and displaying data on large screens in industrial environments. With diverse features, flexible connectivity, and strong system integration capabilities, it is an ideal choice for organizations looking to upgrade their monitoring and control systems to be more modern and efficient.
Investment in Haiwell TVbox will help organizations create modern control centers, increase operational efficiency, and enhance professional image, preparing for the future of smart industry.
