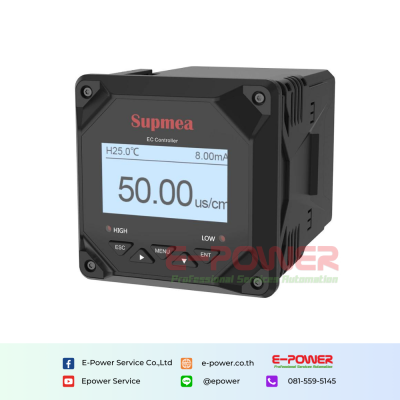

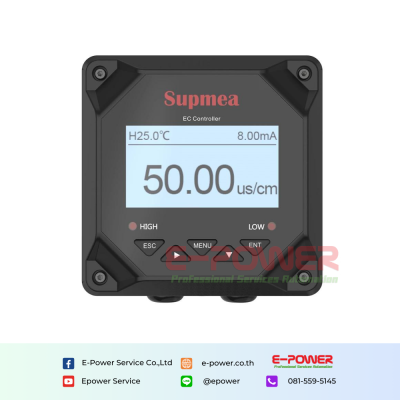

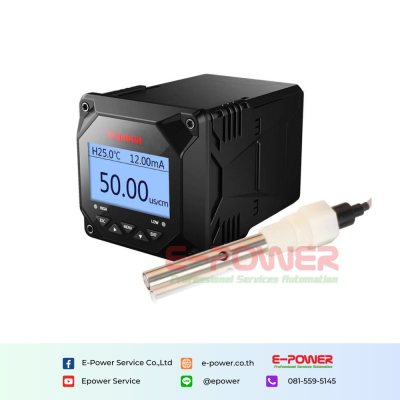

SUP-TDS210-B Conductivity meter

SUP-TDS210-B Conductivity/Hardness/Resistivity Online analyzer, an intelligent Online chemical analyzer, is widely applied for continuous monitoring and measurement of EC value or TDS value or ER value and temperature in the solution in the industry of thermal power, chemical fertilizer, environmental protection, metallurgy, pharmacy, biochemistry, food and water, etc.

Quantity

Categories : Sensor , Liquid analysis , EC sensor and meter

Brands :Supmea

Product description

Download

Characteristics

Range: 0.01 electrode: 0.02～20.00us/cm
0.1 electrode: 0.2～200.0us/cm
1.0 electrode: 2～2000us/cm
10.0 electrode: 0.02～20ms/cm
Output signal: 4~20mA; Relay; RS485
Power supply: AC220V±10%, 50Hz/60Hz

Specifications

Product	TDS meter, EC controller
Model	SUP-TDS210-B
Measure range	0.01 electrode: 0-20.00μs/cm
	0.1 electrode: 0.2 - 200.0μs/cm
	1.0 electrode: 2-2000μs/cm
	10.0 electrode: 0.02-20ms/cm
Basic Error Of Electronic Unit	EC/TDS/ER: ±1%FS NTC10K: ±0.3°C PT1000: ±0.3°C
Measuring medium	Liquid
Temp compensation	NTC10K/PT1000 Manual/ Auto temperature compensation
Temperature Range	0-120°C
Accuracy	2%
Communication	RS485, Modbus-RTU
Signal output	4-20mA, maximum loop 750Ω, 0.2%FS
Relative humidity	(10~85)%RH
Operation temperature	0~60°C
Power supply	AC: 220VAC±10%, 50Hz/60Hz DC: 24VDC±20%
Relay output	250VAC/3A
Operation condition	Temperature: 15~65°C Relative humidity: (5~95)%RH
