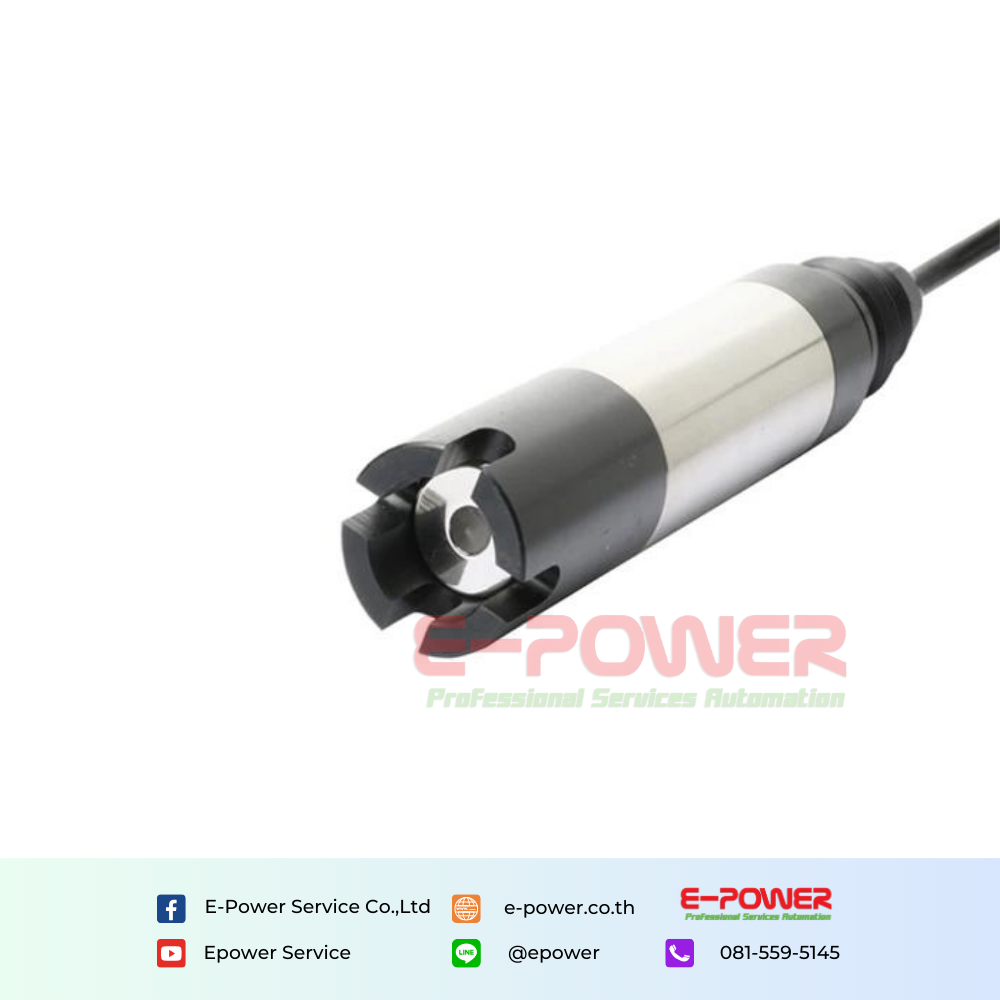

SUP-DO7011 Membrane dissolved oxygen sensor

SUP-DO7011 Membrane dissolved oxygen sensor

SUP-DO7011 Membrane type dissolved oxygen sensor is the measure of oxygen dissolved in an aqueous solution. Polarographic measurement principle, the dissolution value depends on the temperature of the aqueous solution, pressure and salinity in solution.

Quantity

Categories : Sensor , Liquid analysis , Oxygen sensor and meter

Brands :Supmea

Product description

Characteristics

Range: DO：0-20 mg/L、0-20 ppm；Temperature：0-45 ํC
Resolution: DO:±3% of the measured value；Temperature：±0.5 ํC
Output signal: 4~20mA
Temperature Type: NTC 10k/PT1000

Specification

Product	Dissolved oxygen sensor
Model	SUP-DO7011
Measure range	DO: 0-20 mg/L, 0.6 MPa; Temperature: 0-60°C
Accuracy	DO: ±3% of the measured value; Temperature: ±0.5°C
Temperature Type	Pt100、Pt1000、2.252K etc
Output Type	4-20mA output
Weight	1.85Kg
Cable length	5m(Doubleshielding)
ElectrodeShellMaterial	PVCor316L
BreathableThickness	100um
MeasurementError	< 0.01mg/L
AirCurrent/MaximumCurrent	50-80nA/0.1mg/LMAX: 3.5uA
ResponseTime	2min (90%, 20°C)
MinimumFlowRate	2.5cm/s
Zero Oxygen	< 0.01mg/L
Drift	< 2%/month
