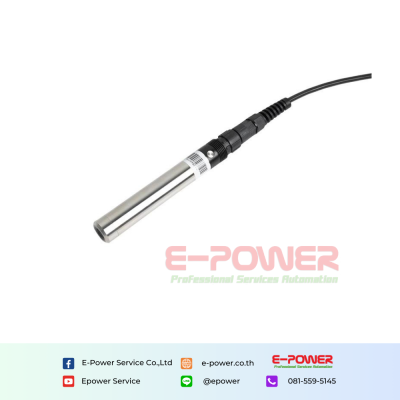

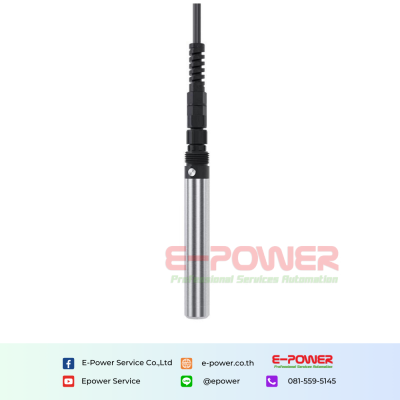

SUP-DO7019 Liquid analyzing meter dissolved oxygen transmitter
Quantity
Product description
Characteristics
- Range: 0-20mg/L
- Resolution: 0.01mg/L
- Output signal: RS485
- Communication protocol: MODBUS-RTU
Specification
| Product | Dissolved Oxygen sensor | |
| Model | SUP-DO7019 | |
| Accuracy | ±3%FS | |
| Measure range | 0-20mg/L or 0-200% saturation | |
| Power supply | 6~12 VDC, current <50mA | |
| Operating temperature | 0 ~ 50°C | |
| Temperature accuracy | ±0.5°C | |
| Communication | Modbus RS-485 | |
| Ingress protection | IP68 | |
| Sensor material | SS316L/Titanium alloy/POM | |

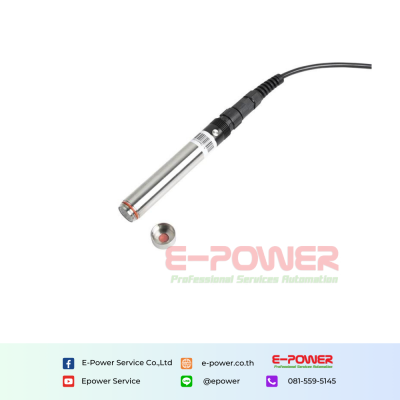

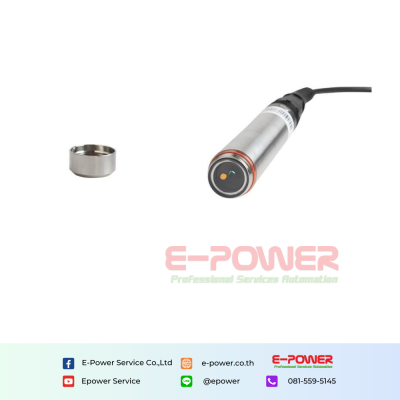

| Fluorescent cap life | One year (under normal use) | |
| Cable | 5m, 10m, 15m, 30m | |
| Response Time | 60 Sec | |
| Temperature Sensor | NTC | |
| Max pressure | 3 bar | |
| Dimension | 22mm*188.3mm | |
| Installation thread | M22*1.5 mm | |
| Calibrations | 100% saturated oxygen(or air) calibration and zero point calibration | |
