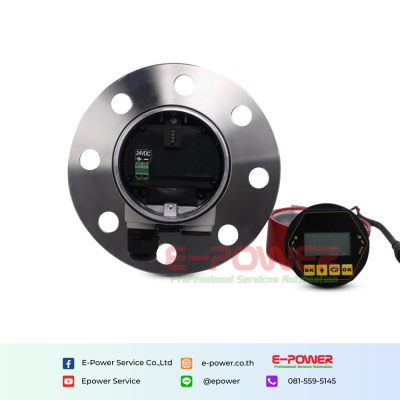

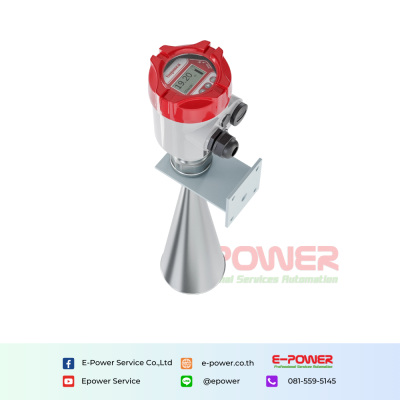

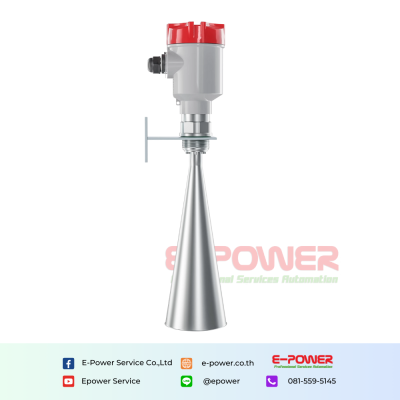

SUP-RD908 Radar level meter for river

SUP-RD908 Radar level meter with top-down installation of a Micropilot sensor offers perfect application fit in all industries. Non-contact radar with simple commissioning, trouble-free operation saves time and money. For usage in a wide range of applications - be it in simple storage tanks, in corrosive or aggressive media or high accuracy tank gauging applications.

Quantity

Categories : Sensor , Level , Radar level transmitter

Brands :Supmea

Product description

Characteristics

Range: 0~30 m
Accuracy: ±3mm
Application: Rivers, Lakes, Shoal
Frequency Range: 26GHz

Specification

Product	Radar level meter
Model	SUP-RD908
Accuracy	±5mm (range 10m) ±10mm (range 30m)
Application	Rivers, Lakes, Shoal
Process Connection	Thread G1½ A"/frame /flange
Medium Temperature	-40~100
Process Pressure	Normal pressure
Ingress protection	IP67
Frequency Range	26GHz
Signal Output	4-20mA RS485/Modbus
Power supply	DC(6~24V)/ Four-wire DC 24V / Two-wire
