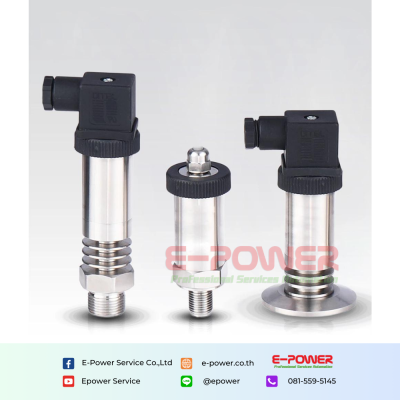

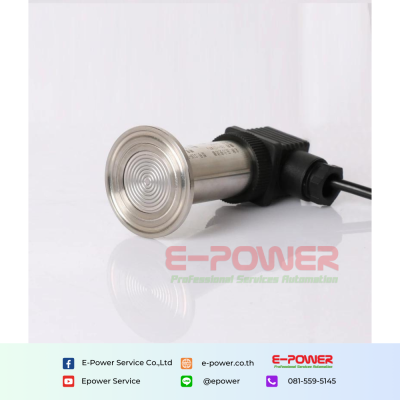

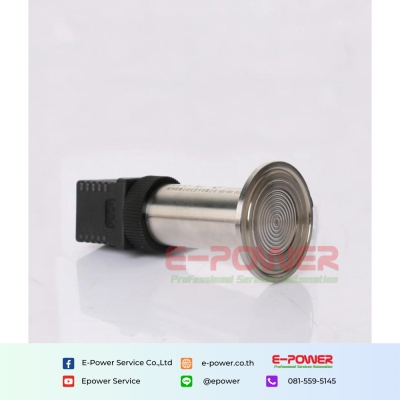

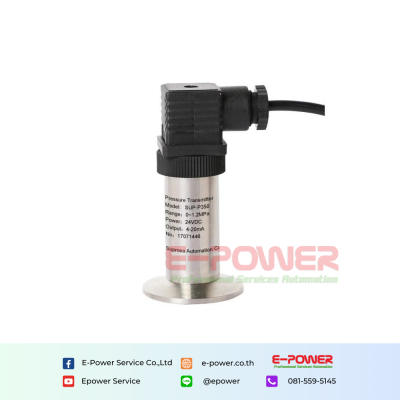

SUP-P350K Hygienic pressure transmitter

SUP-P350K is a piezoresistive pressure sensor with compact design and stainless steel body SS304 and SS316L diaphragm , can work in the non-causticity environment, with 4-20mA signal output.

Quantity

Categories : Sensor , Pressure , Pressure transmitter

Brands :Supmea

Product description

Characteristics

Range: -0.1~ 0 ~ 40MPa
Resolution: 0.5% F.S
Output signal: 4~20mA
Installation: Clamp
Power supply: 24VDC (12 ~ 36V)

Specification

Product	Pressure transmitter
Model	SUP-P350K
Measure range	-0.1...0...3.5MPa
Indication resolution	0.5%
Ambient temperature	-10 ~ 85°C
Output signal	4-20mA analog output
Pressure type	Gauge pressure; Sealed pressure
Measure medium	Liquid; Gas; Oil etc
Pressure overload	150%FS
Power	10-32V (4...20mA);12-32V (0...10V);8-32V (RS485)
