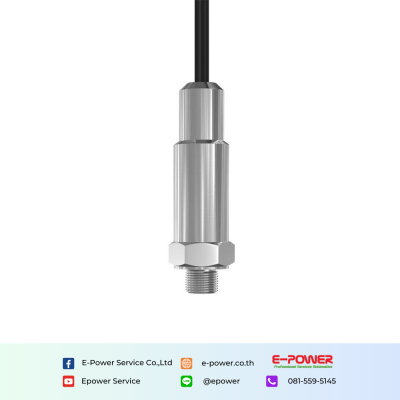

SUP-PD500 Pressure and temperature transmitter

SUP-PD500 is a high performance range of combination pressure and temperature transmitters. Dual 4-20mA outputs make it very powerful and efficient transmitters especially where space is at a premium or it is essential to measure both parameters in the exact same location.

Quantity

Categories : Sensor , Pressure , Pressure transmitter

Brands :Supmea

Product description

Characteristics

Range: -0.1~ 0 ~ 40MPa
Resolution: 0.5% F.S
Output signal: 4~20mA
Installation: Clamp
Power supply: 24VDC (12 ~ 36V)

Specification

Product	Pressure & Temperature Transmitter
Model	SUP-PD500
Measure range	0～600 kPa 60MPa
	0～+80°C
Pressure type	Gauge pressure
Accuracy	Pressure: 0.5% F.S; Temp: 2.5% F.S
Output signal	4...20mA; 1...5V; 0...10V; 0...5V; RS485
Temperature compensation	-10...60°C
Medium temperature	-30...65°C
Overload pressure	150%FS
Long-term stability	± 0.2%FS/year
Power supply	12-30V
Ingress protection	IP68
