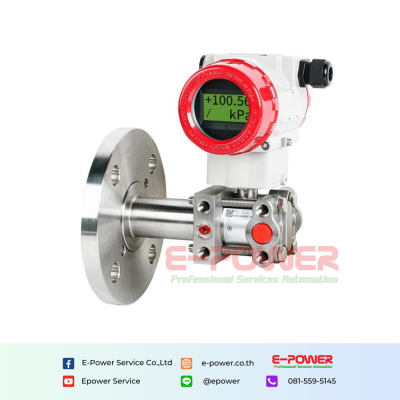

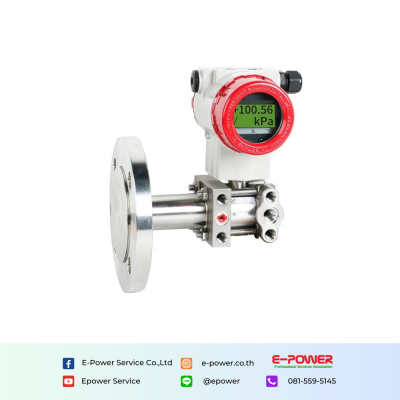

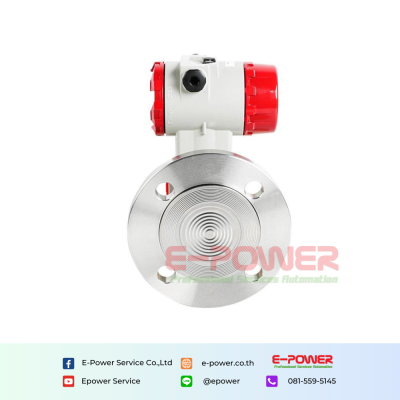

SUP-2051LT Flange mounted differential pressure transmitters

SUP-2051LT Flange mounted differential pressure transmitters

SUP-2051LT Flange-mounted differential pressure transmitter measures the height of the tank body according to According to the principle that the pressure generated by the liquid of different specific gravity at different heights has a linear relationship

Quantity

Categories : Sensor , Pressure , Differential Pressure transmitter

Brands :Supmea

Product description

Characteristics

Range: 0-6kPa~3MPa
Resolution: 0.075%
Output: 4-20mA analog output
Power supply: 24VDC

Specification

Product	Differential Pressure transmitter
Model	SUP-2051LT
Measure range	-100kPa··· 0~0.1kPa··· 3MPa
Indication resolution	±0.075%; ±0.01%FS
Ambient temperature	-40 ~ 85°C (ultra-high temperature type to 600°C)
Medium temperature	-40~100°C
Storage temperature	-50~85°C
Output signal	4-20mA analog output / with HART communication
Shell protection	IP67
Diaphragm material	Stainless steel 316L, Hastelloy C, supports other custom
Product shell	Aluminum alloy, the appearance of epoxy coating
Weight	3.3Kg
