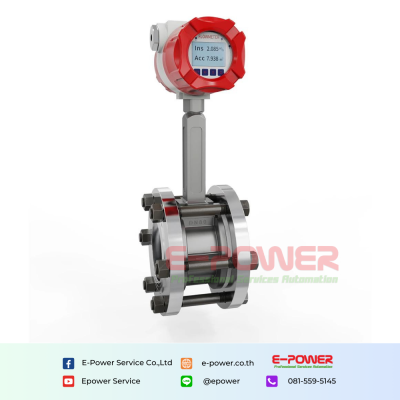

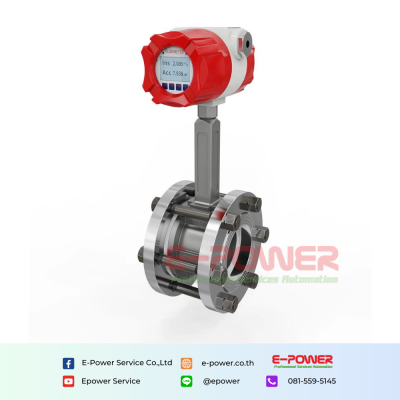

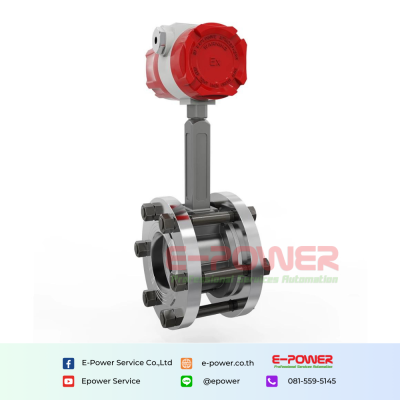

SUP-LUGB Vortex flowmeter wafer installation

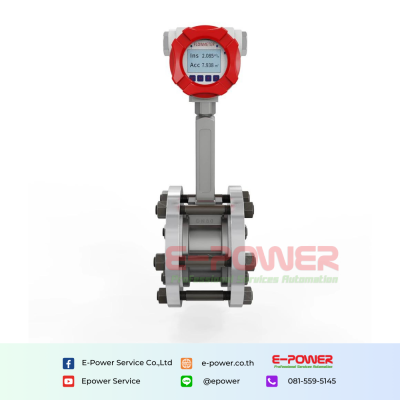

SUP-LUGB Vortex flowmeter wafer installation

SUP-LUGB Vortex flowmeter work on the principle of generated vortex and relation between vortex and flow by theory of Karman and Strouhal, which specialize in measurement of steam, gas and liquid of lower viscosity.

Quantity

Categories : Sensor , Flowmeter , Vortex flowmeter

Brands :Supmea

Product description

Download

Characteristics

Pipe diameter: DN10-DN500
Accuracy: 1.0% 1.5%
Range Ratio: 1:8
Ingress protection: IP65

Specification

Product	Vortex flowmeter with temperature & pressure compensation
Model	SUP-LUGB
Diameter nominal	DN10~DN500
Installation	Wafer connection: DN10-DN500(priority PN2.5MPa) Flange connection: DN10-DN80(priority PN2.5MPa);DN100-DN200(priority PN1.6MPa);DN250-DN500(priority PN1.0MPa)
Accuracy	1.5%, 1.0%
Range Ratio	8:1
Medium Temperature	-20°C ~ +150°C, -20°C ~ +260°C, -20°C ~ +320°C, -20°C ~ +420°C
Output signal	4-20mA
Frequency	RS485 communication (Modbus RTU)
Power supply	24VDC±5% Li battery(3.6VDC)
Ingress protection	IP65
Body Materials	Stainless shell
Display	128*64 dot matrix LCD
