Remond RS485 Electrical Conductivity Sensor for Water

Electrical Conductivity Sensor RS485 and 4-20mA EC Sensor TDS Probe Online Salinity Sensor Conductivity Probe for Water

Product description

EC TDS salinity sensor probe features:

  • Digital sensors, 7*24 hours online monitoring
  • 2-pole electrical conductivity sensor
  • High precision, fast response
  • No need controller and transmitter
  • Built-in temperature sensor, automatic temperature compensation
  • Power supply DC9-30V, output signal RS485 and 4-20mA
  • The sensor can be connected to a computer or PLC
  • A sensor can measure EC, TDS, salinity, temperature, resistivity
  • IP68 grade, waterproof and dustproof

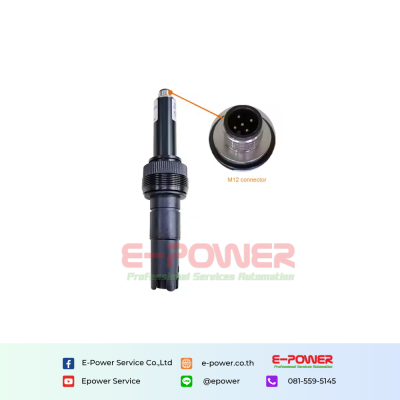

  • M12 connector, pluggable,easy maintenance
  • A variety of installation methods, easy to install

Application:

The EC sensor have a wide range of applications, it can be used in pure water, drinking water, sewage, aquaculture, boiler water, circulating water, river monitoring,industrial water, cooling water,wastewater treatment, electroplating, chemical, pharmaceutical, food, surface water, reverse osmosis, seawater desalination, water treatment, etc.

Conductivity sensor specification

PrincipleRMD-ISEC2M12
Measuring range0...2000uS/cm
ConstantK=1.0
Accuracy ±2%FS
Resolution ±1uS/cm
Temperature range0...60°C
Temp compensationAutomatic
Power supplyDC12V,DC24V
Output signalRS485, 4-20mA
Shell materialABS
Pressure range0...4bar
ThreadM39*1.5
Electrical connectionM12 connector
InstallationFlow through type
Cable length5m or customize
Protection gradeIP68
