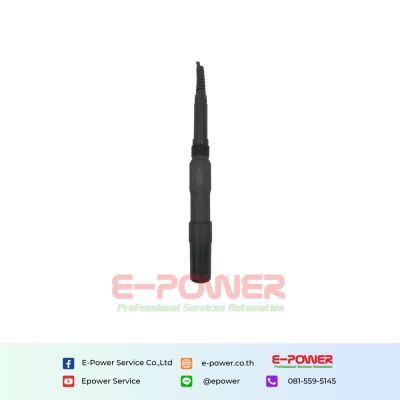

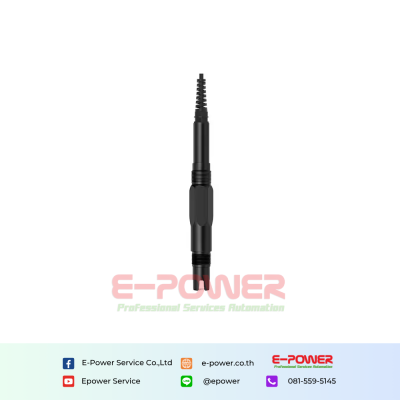

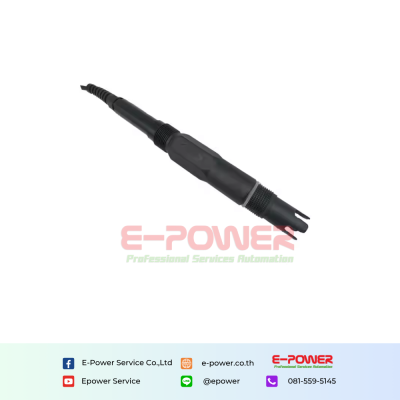

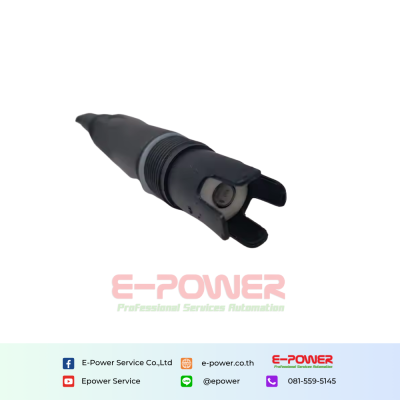

Remond RS485 Digital pH Sensor for Water
what is pH sensor?
pH refers to the acidity or alkalinity of an aqueous solution, specifically the concentration of hydrogen ions. The value varies from 0 to 14. Less than 7 is acidic, greater than 7 is alkaline, and equal to 7 is neutral.
pH sensor is a sensor used to detect the concentration of hydrogen ions in the measured substance and convert it into a corresponding usable output signal.
A pH sensor typically consists of a chemical component and a signal transmission component. PH sensors are commonly used for industrial measurements of substances such as solutions and water.
Online pH Sensor Features:
- Power supply DC9-30V
- 4-20mA output signal
- Support RS-485, Modbus/RTU protocol
- IP68 protection, waterproof
- Quick response, high precision
- 7*24 hours online continuous monitoring
- Easy installation and easy operation
- Different measuring range can meet different requirements
pH probe application:
Water treatment, tap water, sewage treatment, aquaculture,surface water monitoring, envronmental engineering,cooling tower circulating water, beverages and foodstuffs, pharmaceuticals, laboratories,industrial wastewater, discharge monitoring, desulfurization conditions.
pH sensor technical parameter:
| Model | RMD-ISHP105 | RMD-ISEC205 |
| pH Measuring range | 0...14pH | 0...14pH |
| Resolution | 0.01pH | 0.01 pH |
| Accuracy | ±0.02pH | ±0.02pH |
| Temp measure range | 0...60°C | 0.0...60.0°C |
| Resolution | 0.1°C | 0.1°C |
| Accuracy | ±0.3°C | ±0.3 °C |
| Temperature compensation | Automatic | Automatic |
| Power supply | DC9-30V | DC9-30V |
| Output | 4-20mA | 4-20mA |
| Pressure range | 0-3bar | 0-3bar |
| Data communication | RS485(MODBUS-RTU) | RS485(MODBUS-RTU) |
| Shell material | PPS | ABS |
| Thread | G3/4, NPT3/4 | M39*1.5 |
| Cable length | 5m default | 5m default |
| Install | Immersion type | Flow through type |
