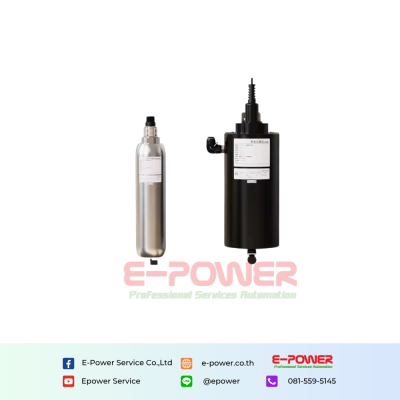

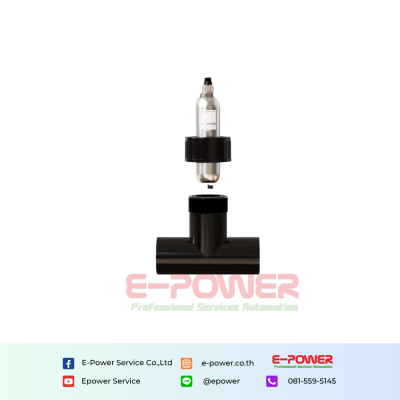

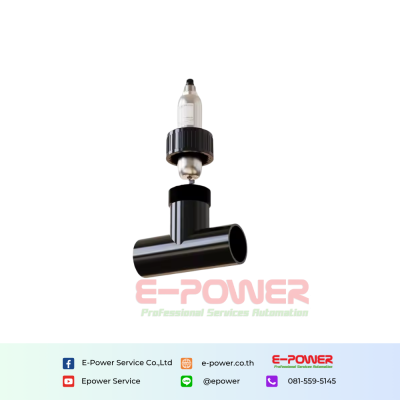

PTSA trace sensor features
COD sensor datasheet
Sensor SpecificationModel | RMD-ISPT-B |
Principle | Fluorescence |
Measuring range | 0...200ppb, 0...500ppb |
Accuracy | ±0.25ppb or ±5%FS |
Resolution | 0.01ppb |
Temperature range | 0...60°C |
Temp compensation | Automatic |
Power supply | DC12V,DC24V |
Output signal | RS485 |
Shell material | SS316 |
Pressure range | 0...3bar |
Thread | G3/4 |
Electrical connection | M12 connector |
Cable length | 5m or customize |
Protection grade | IP68 |
