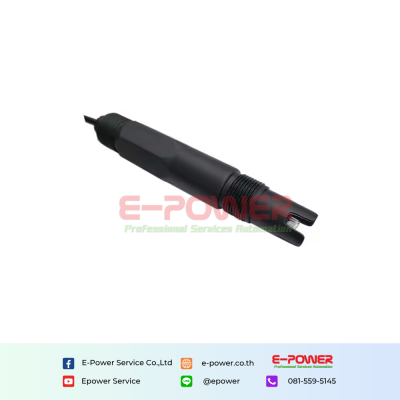

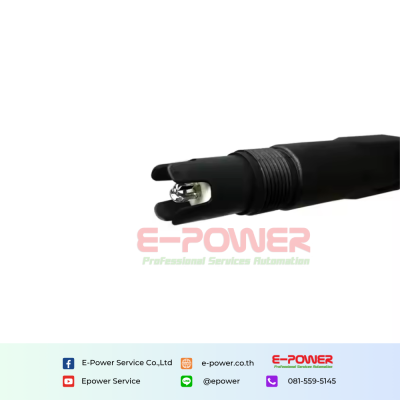

Remond RS485 Electrical Conductivity Sensor/ Salinity Probe 0-20mS TDS Sensor/ EC Sensor
Electrical Conductivity Sensor 4-20ma Salinity Probe 0-20mS TDS Sensor EC Sensor RS485 Conductivity Meter
Product description
Electrical conductivity sensor features:
- Digital sensors, 7*24 hours online monitoring
- 2-pole electrical conductivity sensor
- High precision, fast response
- No need controller and transmitter
- Built-in temperature sensor, automatic temperature compensation
- Power supply DC9-30V, output signal RS485 and 4-20mA
- The sensor can be connected to a computer or PLC
- A sensor can measure EC, TDS, salinity, temperature, resistivity
- IP68 grade, waterproof and dustproof
- A variety of installation methods, easy to install
Conductivity sensor specification
Sensor Comparison Table| Model | RMD-ISEC2M10 | RMD-ISEC210 | RMD-ISEP110 |
|---|---|---|---|
| Measuring range | 0...20000μS/cm | 0...20000μS/cm | 0...20000μS/cm |
| Constant | K=10.0 | K=10.0 | K=10.0 |
| Accuracy | ±2%FS | ±2%FS | ±2%FS |
| Resolution | ±1μS/cm | ±1μS/cm | ±1μS/cm |
| Temperature range | 0...60°C | 0...60°C | 0...60°C |
| Temp compensation | Automatic | Automatic | Automatic |
| Power supply | DC12V,DC24V | DC12V,DC24V | DC12V,DC24V |
| Output signal | RS485, 4-20mA | RS485, 4-20mA | RS485, 4-20mA |
| Shell material | ABS | ABS | PPS |
| Pressure range | 0...4bar | 0...4bar | 0...4bar |
| Thread | M39×1.5 | M39×1.5 | 3/4 |
| Electrical connection | M12 connector | Pin type | Pin type |
| Installation | Flow through type | Flow through type | Immersion type |
| Cable length | 5m or customize | 5m or customize | 5m or customize |
| Protection grade | IP68 | IP68 | IP68 |
