Product Description

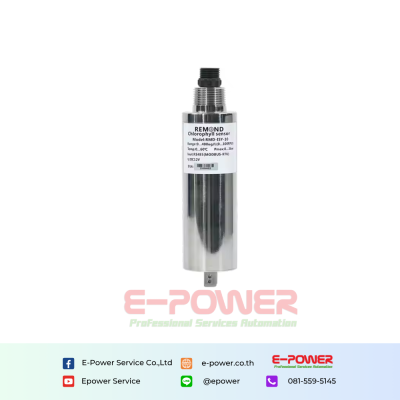

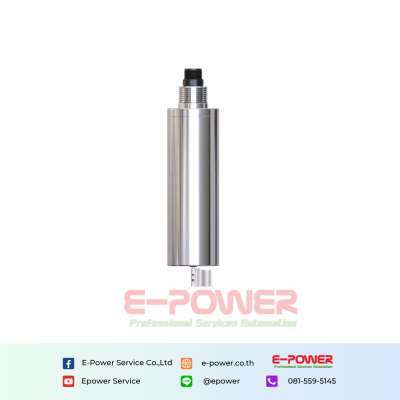

The chlorophyll sensor adopts the leading optical technology, with automatic cleaning brush, integrated design, with high efficiency power management, rugged structure, stable sensor performance, maintenance-free and frequent calibration, can be used online for a long time.
It can be used for research, investigation and monitoring of rivers, lakes, ponds, marine surveys, aquaculture, drinking water sources, algae and phytoplankton conditions.
Chlorophyll Sensor Features:
Digital Chlorophyll Sensor technical data
| Parameter | Specification |
|---|---|
| Measuring range | 0...500ug/L or 0...100RFU |
| Resolution | 0.1ug/L or 0.1% RFU |
| Temp measure range | 0...50°C |
| Deepest depth | underwater 10 meters |
| Material | stainless steel |
| Calibration method | Two-point calibration |
| Data communication | RS485(MODBUS-RTU) |
| Power supply | DC12V |
| Cable length | 5m standard or customization |
| Thread | 3/4 |
| Protection grade | IP68 |
