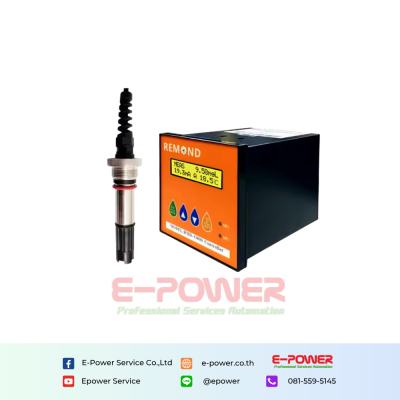

Remond Economic Dissolved Oxygen Electrode DO Probe DO Sensor for Aquaculture

Economic Dissolved Oxygen Electrode DO Probe DO Sensor for Aquaculture

Brands :Remond

Product description

Dissolved Oxygen Sensor Technical Parameter

The dissolved oxygen electrode is a diaphragm polarographic sensor composed of a cathode and an anode connected by a conductive electrolyte

Measuring principle: Current type sensor (polarographic electrode)

Measuring range	0.00...20.00mg/l(ppm)
Temperature range	0.0...60.0°C
Sensitivity	±0.05% of range
Repeatability	±0.05% of range
Pressure range	0...2bar
Medium flow rate	minimum flow rate is 0.02m/s
Material	PC,316L
Storage temperature	-20.0...60.0°C
Process connection thread	M28*1.5
Protection grade	IP68
Polarization voltage	0.675V±50mV
Cable length	5 m,10m or customize
Electrical connection	BNC connector(Optional pin)
Sensitive membrane	H2020 Sensitive oxygen membrane
Calibration interval	Once every 2 months
Maintenance interval	Add or replace electrolyte every 3-6 months Replace membrane head every 6-12 months
