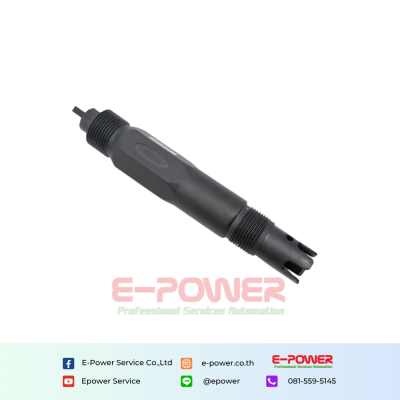

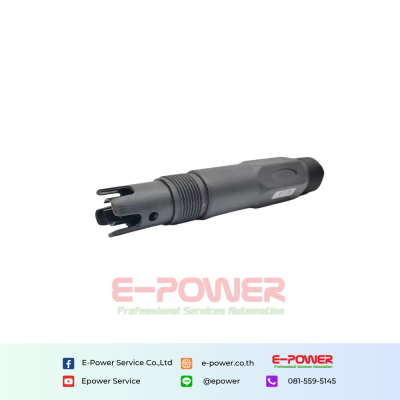

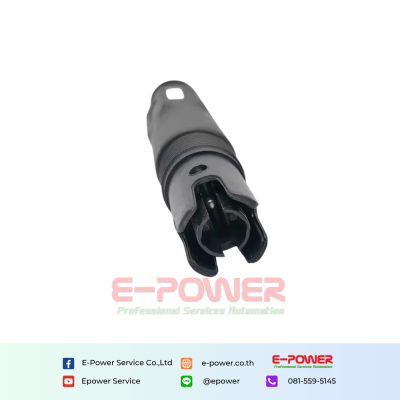

Remond Conductivity Electrode TDS Sensor Probe for Water Treatment

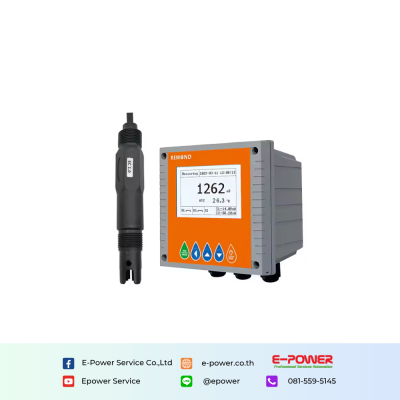

Electrical Conductivity Controller RS485 EC Meter Conductivity Electrode TDS Sensor Probe for Water Treatment

Brands :Remond

Product description

Conductivity Meter technical data

Functions	EC	Resistivity	Salinity	TDS
Measuring range	0.00uS-2000mS	0.00-20.00 MΩ·CM	0.00-78.00 g/Kg	0-133000 ppm
Resolution	0.01/0.1/1	0.01	0.01	1
Accuracy	±1%F.S.	±1%F.S.	±1%F.S.	±1%F.S.
Temp. compensation	Pt 1000/NTC30K
Temp. range	-10.0 to +130.0°C
Temp. compensation range	-10.0 to +130.0°C
Temp. resolution	0.1°C
Temp. accuracy	±0.2°C
Cell constant	0.001 to 20.000
Ambient temperature range	0 to +70°C
Storage temp.	-20 to +70°C
Display	Back light, dot matrix
EC current output1	Isolated, 4 to 20mA output , max. load 500Ω
Temp. current output 2	Isolated, 4 to 20mA output , max. load 500Ω
Current output accuracy	±0.05 mA
RS485	Mod bus RTU protocol
Baud rate	9600/19200/38400
Maximum relay contacts capacity	5A/250VAC,5A/30VDC
Cleaning setting	ON: 1 to 1000 seconds, OFF: 0.1 to 1000.0 hours
One multi function relay	clean/period alarm/error alarm
Relay delay	0-120 seconds
Data logging capacity	500,000
Language selection	English/traditional Chinese/simplified Chinese
Waterproof grade	IP65
Power supply	From 90 to 260 VAC, power consumption < 7 watts
Installation	panel/wall/pipe installation
