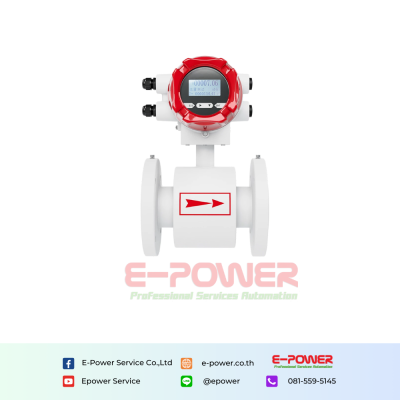

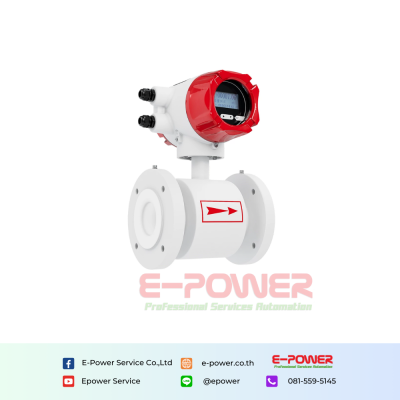

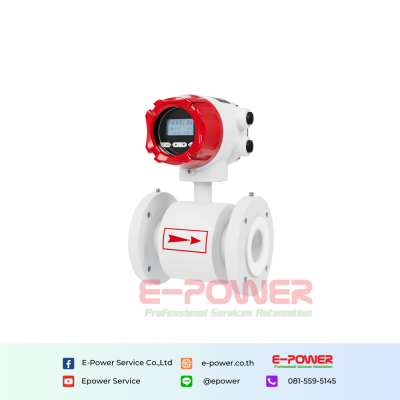

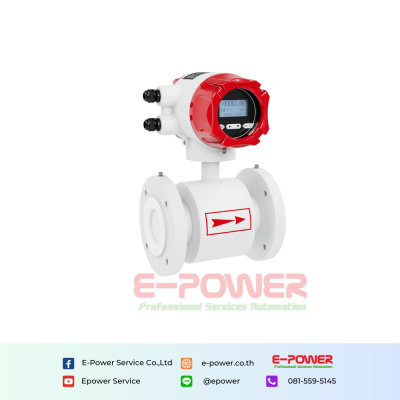

SUP-FMC400 Low Conductivity Electromagnetic Flow Meter

SUP-FMC400 Low Conductivity Electromagnetic Flow Meter

The battery-powered electromagnetic flow meter converter adopts internal battery power supply without external power supply. It is suitable for working conditions where the field power grid cannot be reached and the power grid is difficult to lay. It is especially suitable for the monitoring, metering and settlement of the tap water supply system.

Quantity

Categories : Sensor , Flowmeter , Magnetic flowmeter

Brands :Supmea

Product description

Download

Characteristics

Accuracy: Measurement value±0.5%(Flow velocity 0.5m/s~5m/s)
Direct measured variables ：Flow velocity
Calculated measured variables ：Volume flow , mass flow
Velocity of flow：Typically Velocity of flow：0.5m/s~5m/s

Note：If there are differences in the selection of individual specifications, the label shall prevail, and high-voltage can be customized

Specifications

Product	Electromagnetic flowmeter
Model	SUP-FMC400
Diameter nominal	DN10～DN1000
Nominal pressure	DN15 - DN250, PN 1.6MPa DN300 - DN1000, PN 1.0MPa
Accuracy	Measurement value ±0.5%(Flow velocity 0.5m/s～5m/s)
Repetitiveness	0.16%
Liner material	CR,UR,PTFE(F4),FEP(F46),and PTFE(PTA)
Electrode material	316L Stainless Steel, Hastelloy C, Hastelloy B, Ti, Ta, Pt
Medium temperature	Polyurethane: -10...+60°C ;PTFE/FEP: -10...+120°C;Chloroprene: -10...+70°C; PFA: -10...+120°C
Power supply	AC: 85V～264V, 50Hz～60Hz; DC: 18V～28V
Communications	RS485,MODBUS-RTU
Ingress protection	IP65
