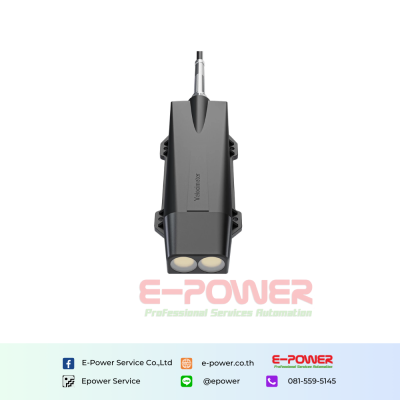

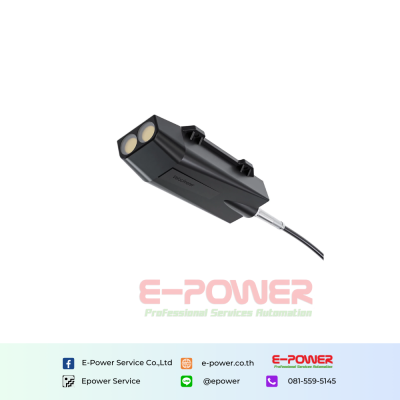

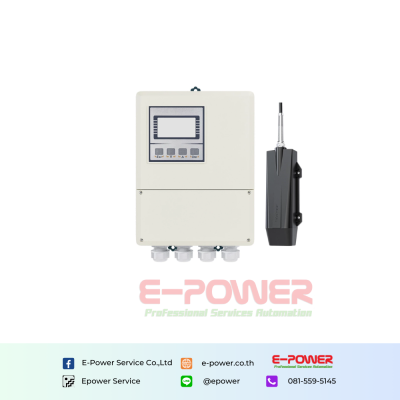

SUP-FSD300 Ultrasonic Doppler Flow Meter

SUP-FSD300 Ultrasonic Doppler Flow Meter

SUP-FSD300 Ultrasonic Doppler flowmeter is an instrument to measure the flow rate and flow of water in natural waters or channels and pipelines. It is easy to operate and with stable performance.

Categories : Sensor , Flowmeter , Ultrasonic flowmeter

Brands :Supmea

Product details

Characteristics

Measured variable : Flow rate,liquid,temperature
Accuracy: Flow rate（1.0%±0.01m/s），Liquid level（0.2%±0.01m），Temperature: （±1）
Power supply: AC: 220V；DC: 24V
Output: (4~20)mA（0~5)V, RS485
Medium temperature: (0～60)°C

Specification

Product	Ultrasonic Doppler Flow Meter
Model	SUP-FSD300
Parameter
Measured variable	Flow rate,liquid,temperature
Measuring range	Bidirectional flow but no identification of flow direction, absolute value of flow rate flow rate	Flow rate: (0~10) m/s Liquid level: (0~10) m
	Bidirectional flow and identification of flow direction, flow rate flow with plus or minus sign	Flow rate: (-10~10) m/s Liquid level: (0~10) m
	Temperature	(-5 ~ 60)°C
Accuracy	Flow rate: 1.0%±0.01m/s
	Liquid level: 0.2%±0.01m
	Temperature: ±1
Resolution	Flow rate: 1mm/s
	Liquid level: 1mm
Response time	10s ~ 60s Note: Set the smoothing coefficient through the communication protocol, the larger the value the faster the response of smoothing flow rate.
Operating frequency	2MHz
Firing power	1W
Protection level	IP68

Output
Transformer output	Output type	(4~20)mA (0~5)V
	Output accuracy	0.5% F.S
	Output load	250Ω
Communication output	Output type	RS485
	Communication specification	MODBUS
Relay output	Relay type	Dual SPDT / Dual SPDT+Dual SPST
Power supply
Power supply	AC: 220V
	DC: 24V
Power consumption	4W
Over-voltage protection	36V
Electrical interface	M20*1.5 cable plugs
Process conditions
Type of waterway	Pipelines, channels, natural streams, rivers
Measured medium	pH value between 6 and 8, non-corrosive to the sensor
Medium temperature	(0～60)°C
Environmental conditions
Ambient temperature	(0～60)°C
Storage temperature	(-20～60)°C
